Rock Bottom Price
This item is heavily discounted and may not qualify for discounts unless bulk quantities are requested. Request Bulk Discount
AC InfinitySKU: DS-AC-IBS24


Price:
$239
  • Description

Description

The AC Infinity IONBOARD S24 is a high-performance 220W LED grow light engineered to maximize yields in 2x4 grow tents. Utilizing high-efficiency Samsung LM301H diodes, this board provides a sun-like full spectrum that supports plants through every stage, from germination to flowering. Its algorithmically positioned diodes ensure uniform coverage and deep canopy penetration, while the unibody aluminum design allows for fanless, silent heat dissipation.

Key Performance Highlights

  • Samsung LM301H Diodes: Features 544 top-tier LEDs for maximum light output and energy efficiency.

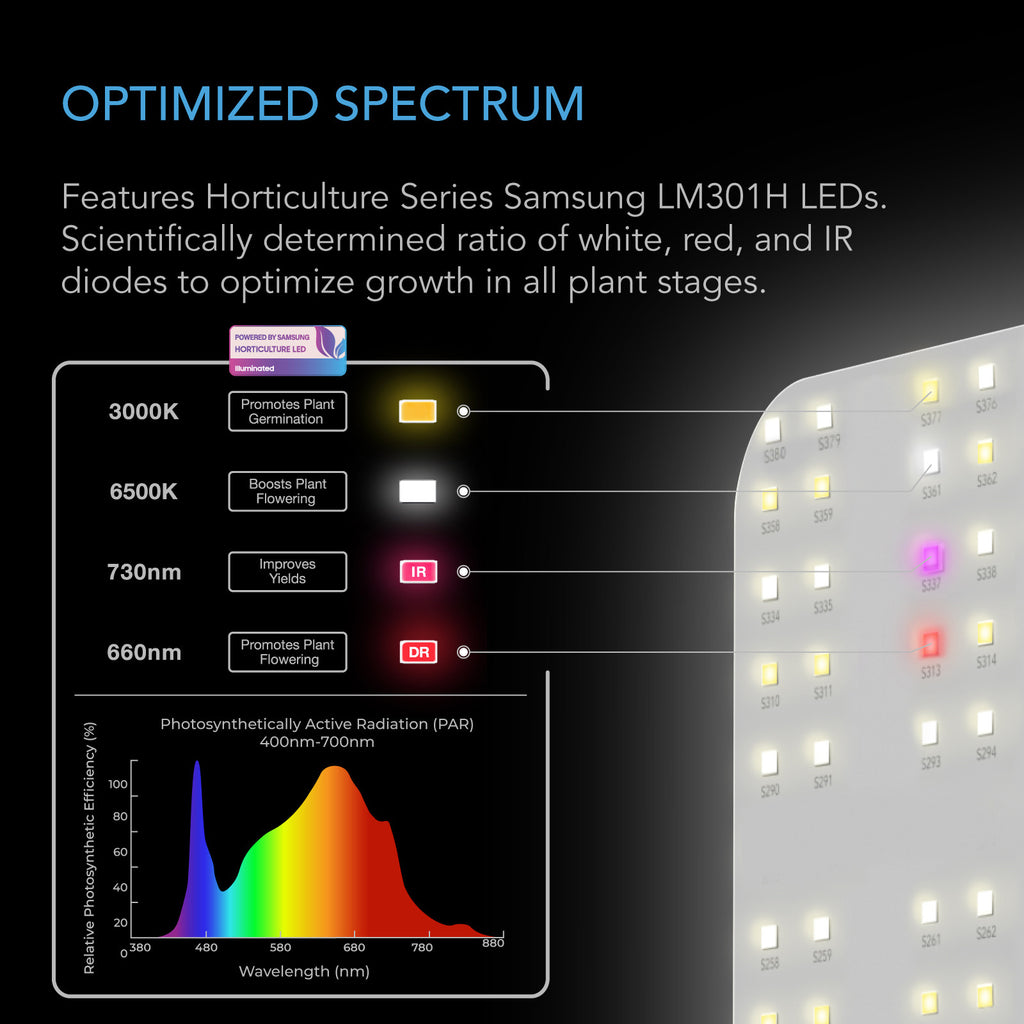

  • Optimized Full Spectrum: Includes 660nm deep red and 730nm infrared to boost photosynthesis and flower density.

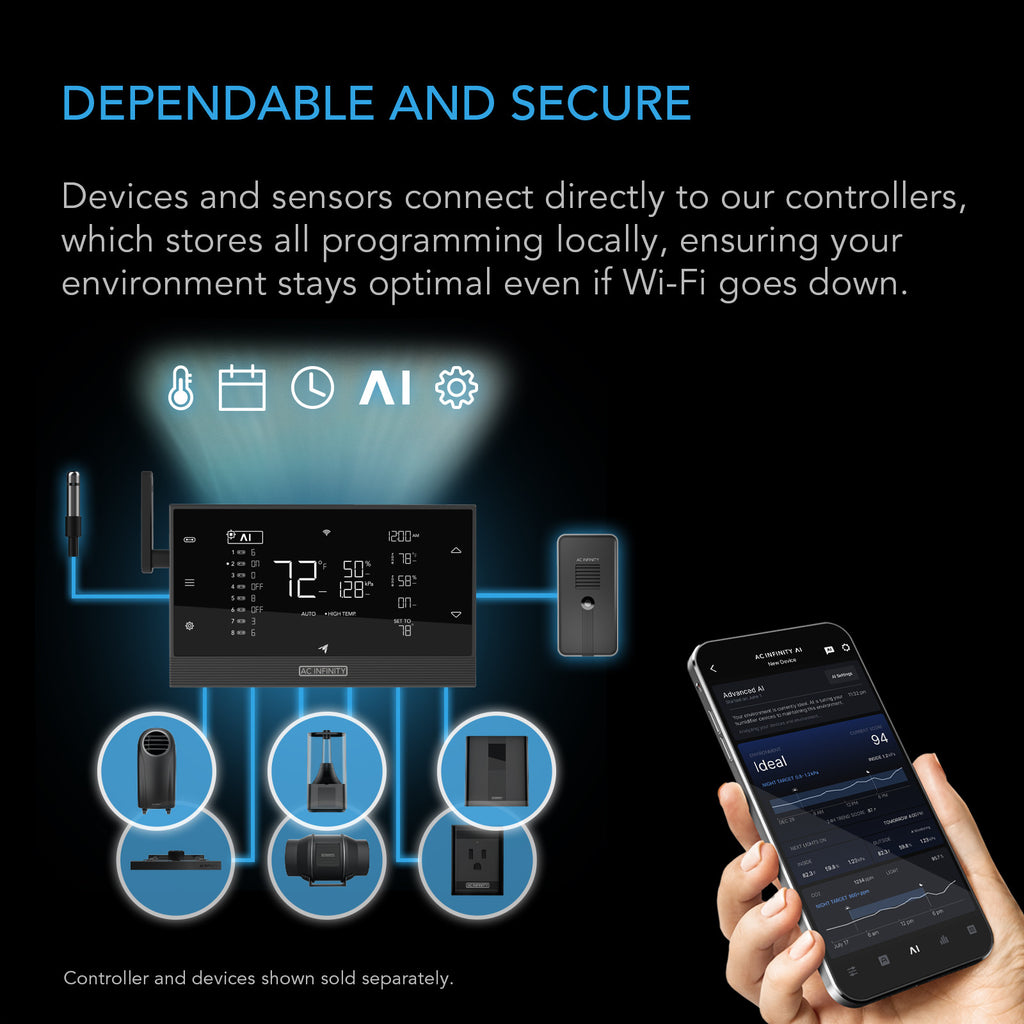

  • Smart Ecosystem Ready: Connects to UIS™ controllers for automated grow cycles and mobile app management.

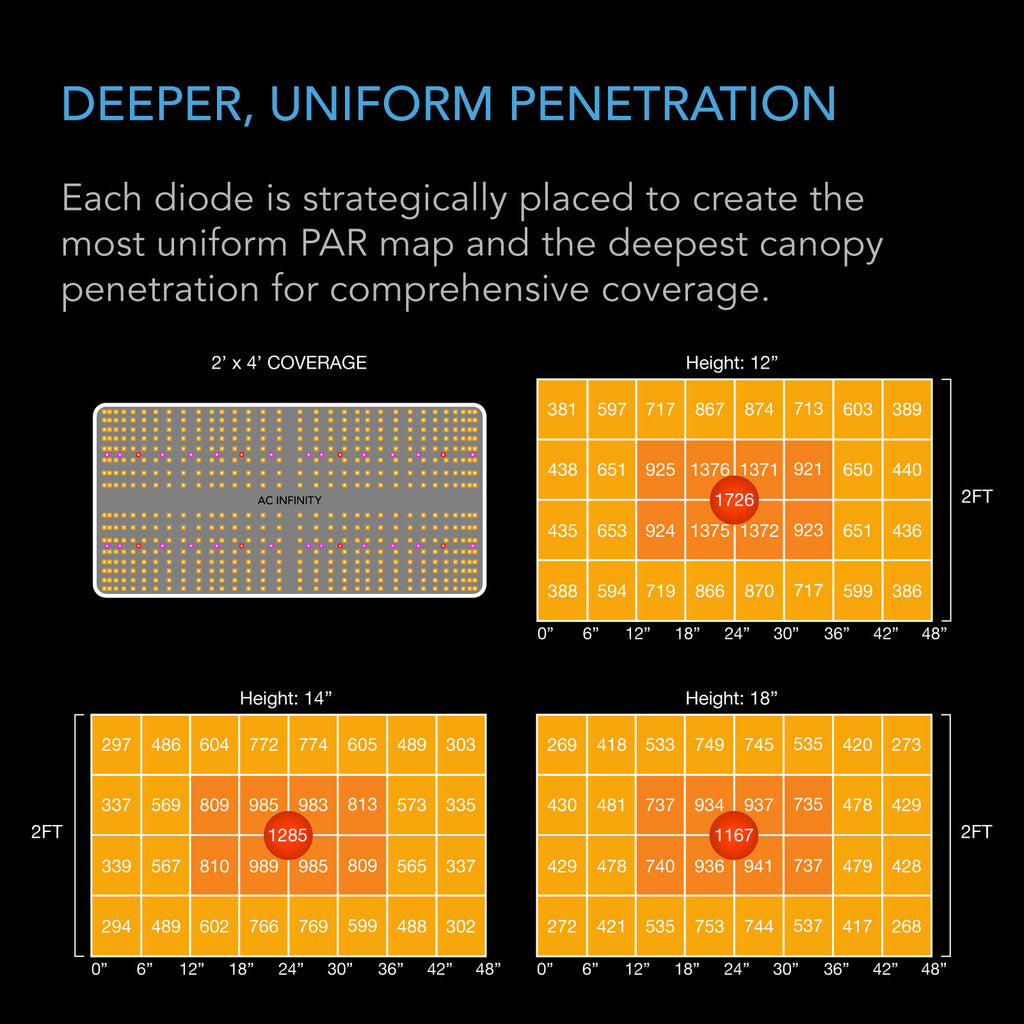

  • Uniform PAR Distribution: Diode placement is scientifically mapped to prevent hot spots and ensure even growth across the canopy.

  • Fanless Cooling: The unibody aluminum board acts as a massive heat sink, keeping the fixture cool without noisy fans.

  • Precision Dimming: Includes an easy-to-use digital dimming knob with 20% increments for customized intensity.

  • Durability & Safety: IP-65 rated against dust and moisture, and ETL certified for safe operation in grow environments.



Designed for the modern grower, the S24 features a proprietary driver with a digital dimming timer and UIS™ connectivity. This allows you to integrate the light into the AC Infinity smart ecosystem for remote app control and automated scheduling. With an IP-65 rating, the light is built to withstand the high humidity and temperatures common in indoor gardening, ensuring long-term reliability and peak performance.

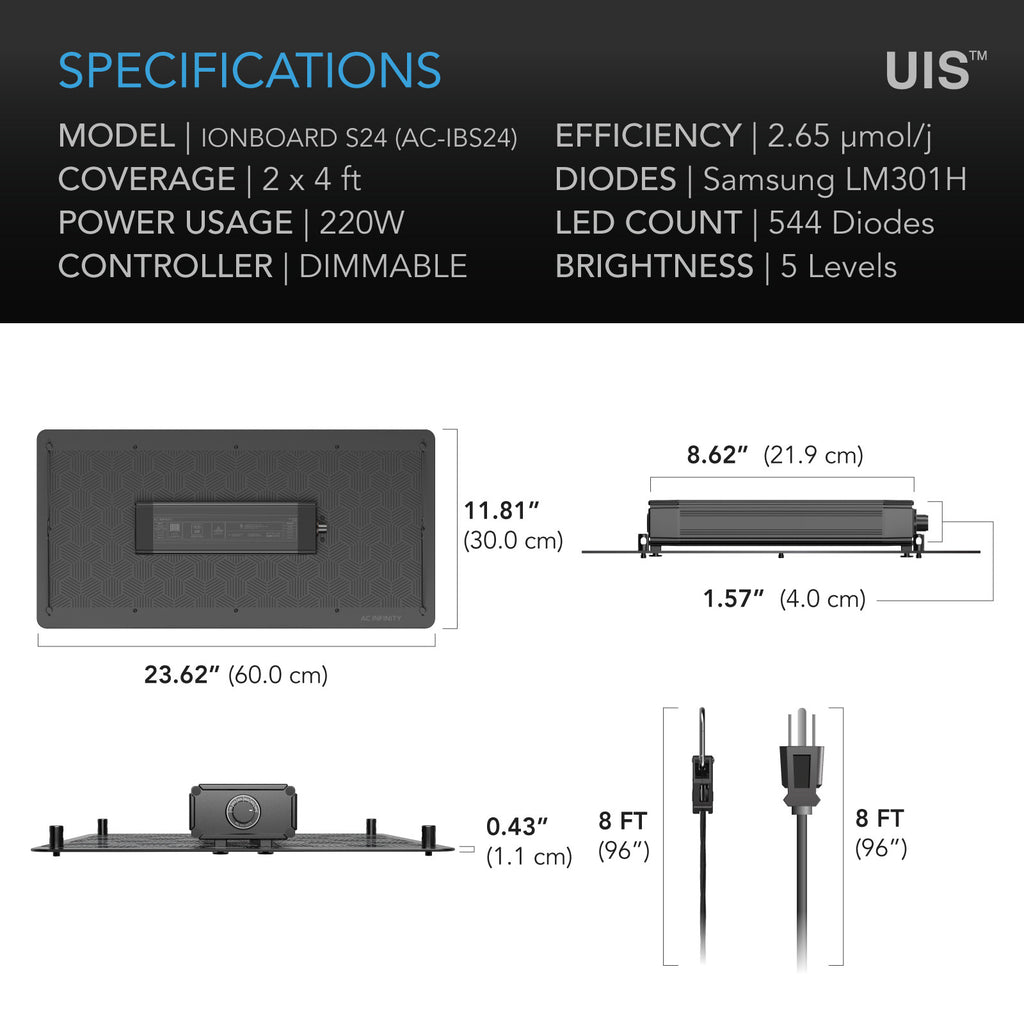

 Product Specifications

  • Manufacturer: AC Infinity Inc.

  • Model: IONBOARD S24 (AC-IBS24)

  • UPC: 819137022522

  • Form Factor: Ultra-slim LED board (0.43 in. thickness) designed for efficient heat dissipation.

  • Dimensions: 11.81 x 23.62 in. (30.0 x 60.0 cm).

  • Coverage Area: Optimized for a 2 x 4 ft. grow space.

  • Premium Diodes: Equipped with 544 Samsung LM301H high-efficiency chips.

  • Full Spectrum Output: Targeted wavelengths including 660nm (Deep Red), 730nm (Infrared), 3000K, and 6500K for all growth stages.

  • Efficacy: High-efficiency rating of 2.65 µmol/j.

  • Peak Intensity: Delivers up to 1726 PPFD.

  • Wattage: 220W draw.

  • Driver: AC Infinity Proprietary Driver (IB-200).

  • Voltage Compatibility: 100–277V AC (50/60 Hz).

  • Amperage: 1.84A @ 120V | 0.92A @ 240V | 0.80A @ 277V.

  • Power Connection: Standard US Plug (NEMA 1-15 Type-A).

  • Digital Control: Includes a digital dimming timer for precise light intensity management.

  • Longevity: Rated for a life expectancy of 50,000 hours.

  • Operating Environment: Functions safely between 32–140°F and 35–85% RH.

  • Safety: ETL Certified: PDF

  • Product Manual: PDF
