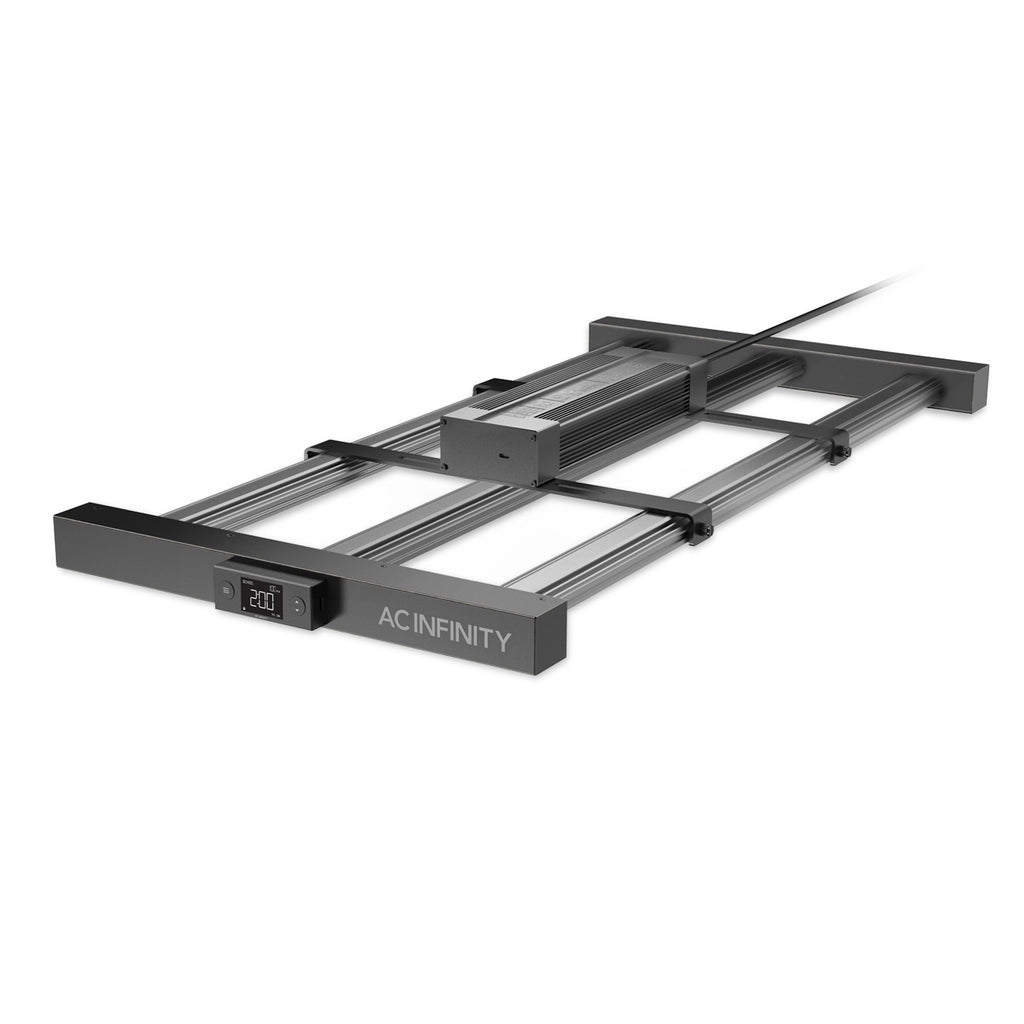

Maximize your harvest with this IONFRAME EVO3, designed for large spaces. It features Samsung LM301H EVO diodes for superior, full-spectrum coverage that boosts plant growth and yield. The light has a modular, IP-65-rated aluminum/steel build with magnetic mounting and an ETL safety certification. Use the optional smart controller for scheduling, 10 brightness levels, and sunrise/sunset effects, or integrate it into the UIS™ platform for Wi-Fi automation and advanced control.

• Features Samsung LM301H EVO: Each LEDs each rated at 3.14 µmol/J PPE, the highest efficiency of LM301B, LM301H, and Bridgelux 3030 chips.

• Programmed with schedule controls:  Sunrise/sunset dimming, and 10 brightness levels; UIS™ platform-compatible for WiFi app control. (controller not included)

• Bar-style fixture: With algorithmically spaced diodes optimized for even coverage, deep canopy penetration, and hotspot reduction.

• Passive cooling LED driver:  Removable to balance heat dissipation; also supports daisy-chaining with up to 80 grow lights.

• Excellent Coverage: 3 x 5 ft. Veg. Coverage | 2 x 4 ft. Flower Coverage | Samsung LM301H EVO Chips | 840 Diodes | 280W | 1745 PPFD | ETL Cert. 5021417

Purchase Controller AI+ here

Purchase Controller 69 PRO here

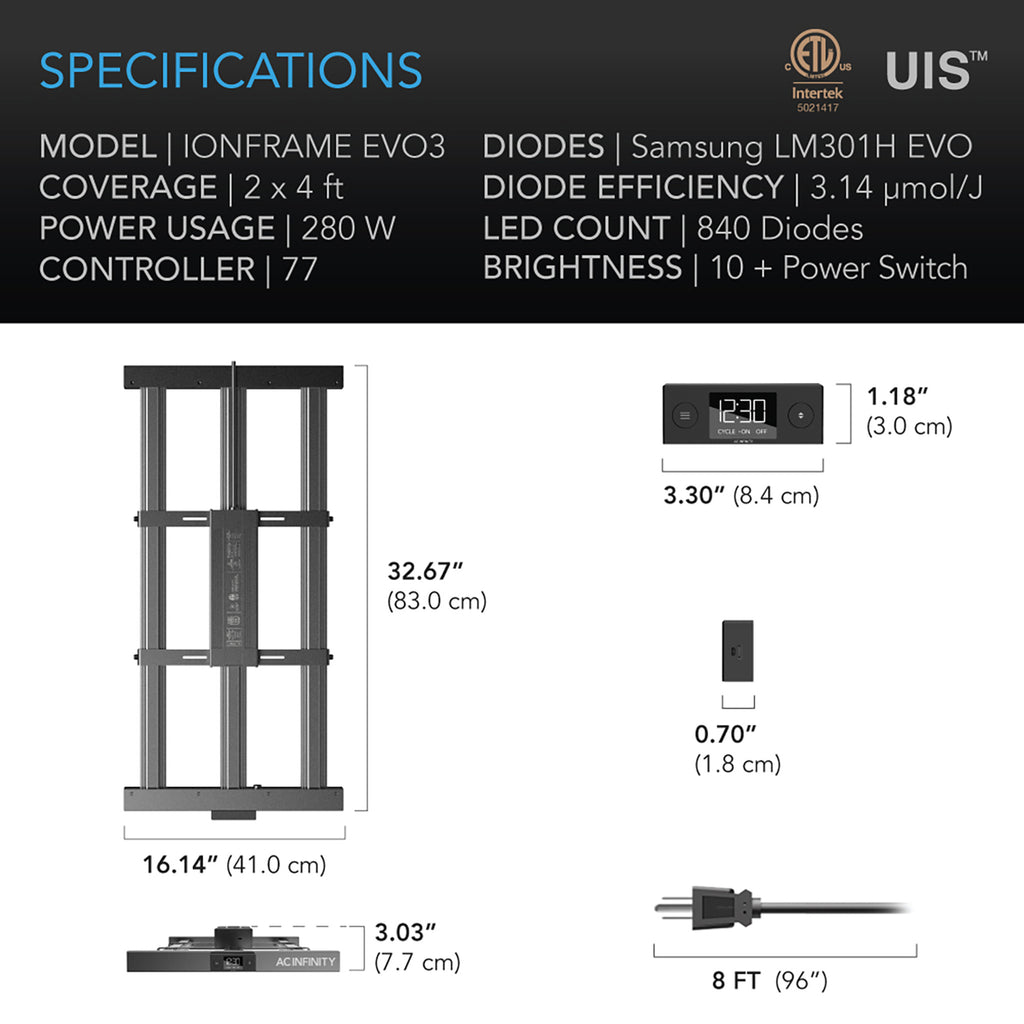

Product and Mounting Dimensions

• Light Dimensions    16.14 x 32.67 x 3.03 in.

• Driver Dimensions    7.16 x 1.57 in.

Product Performance and Technical Specs

• Coverage    2 x 4 ft.
• Diodes    Samsung LM301H EVO

• Spectrum    395nm, 660nm, 730nm, 3000K, 5000K

• Chip Count (Total)    840

• Chip Count (EVO 3000K)    537

• Chip Count (EVO 5000K)    270

• Chip Count (Seoul 395 nm)    3

• Chip Count (OSRAM 660 nm)    27

• Chip Count (OSRAM 730 nm)    3

• LED Driver    SOSEN-320W

• Efficiency (Single Diode)    3.14 µmol/J

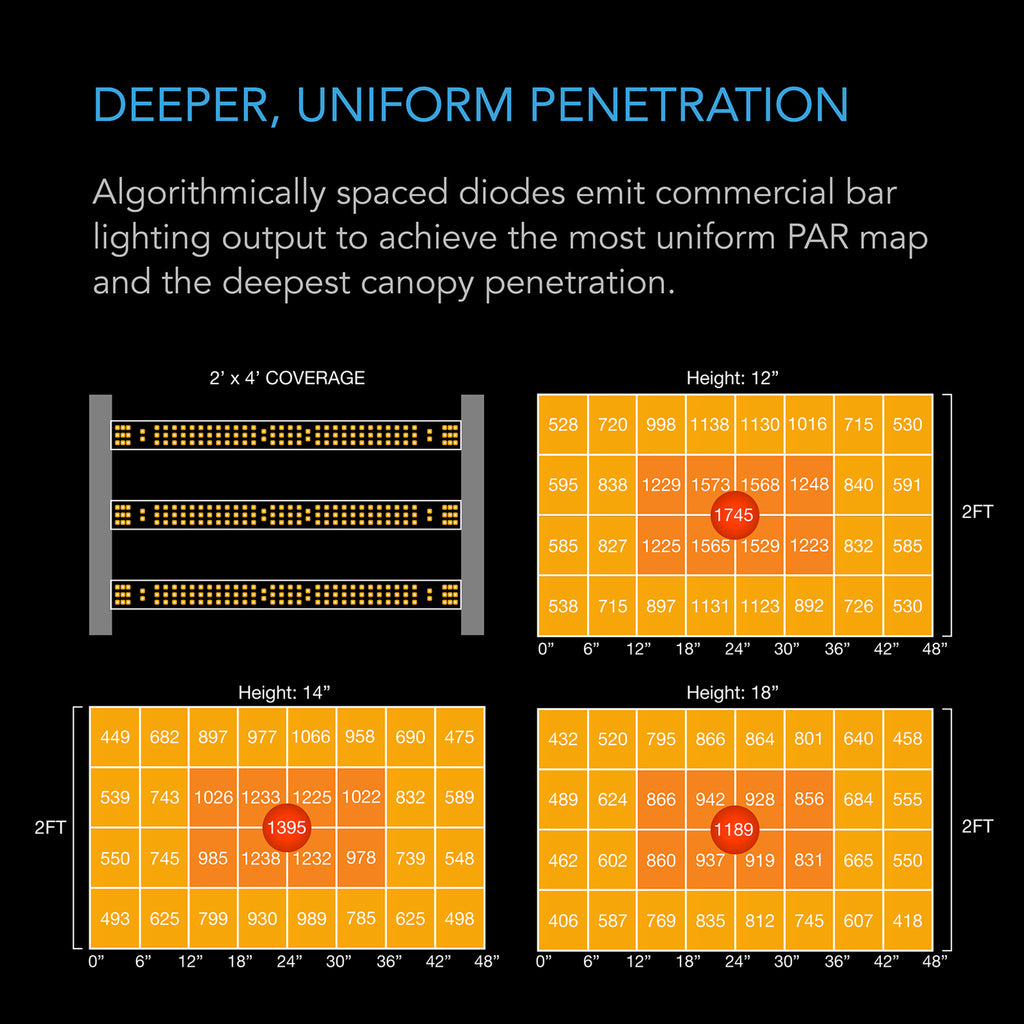

• PPFD    1745 PPFD

• Wattage    280 W

• Voltage    100-277V AC

• Frequency    50/60 Hz

• Amps    2.8 A

• Controller    Schedule Controller (sold separately)

• Power Connector Type    US Plug (NEMA 1-15 Type-A)

• Operating Humidity    35 to 85% RH

• Operating Temperature    32 to 140°F

• Waterproof Rating    IP-65
