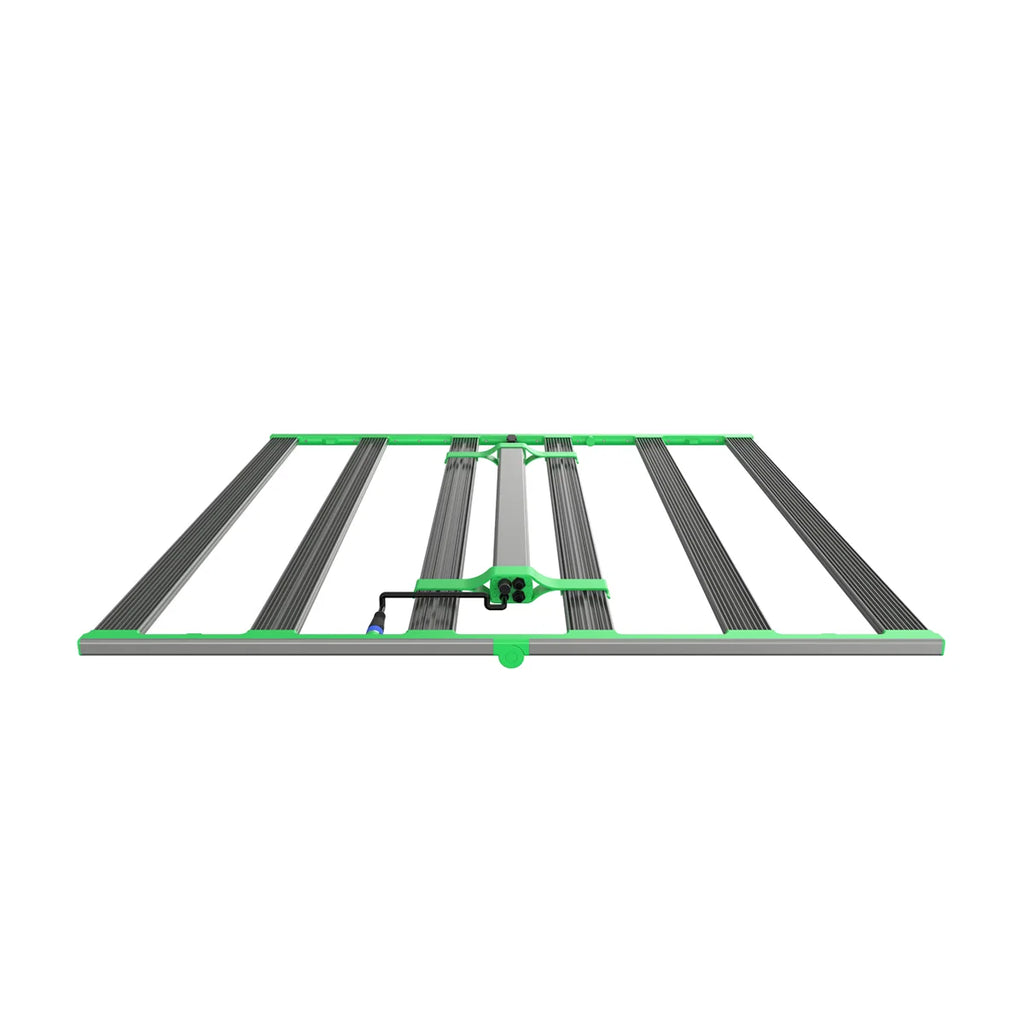

CeresLux Bar X 820W Side Profile Unfolded Frame
CeresLux Bar X 820W Perspective View Lit Grow Light Fixture
CeresLux Bar X 820W Underside View 6 Bar LED Arrangement
CeresLux Bar X 820W Top View Frame and Driver Layout
CeresLux Bar X 820W Front View Lit LED Grow Light
CeresLux Bar X 820W Exploded View LED Strip Lens Bar

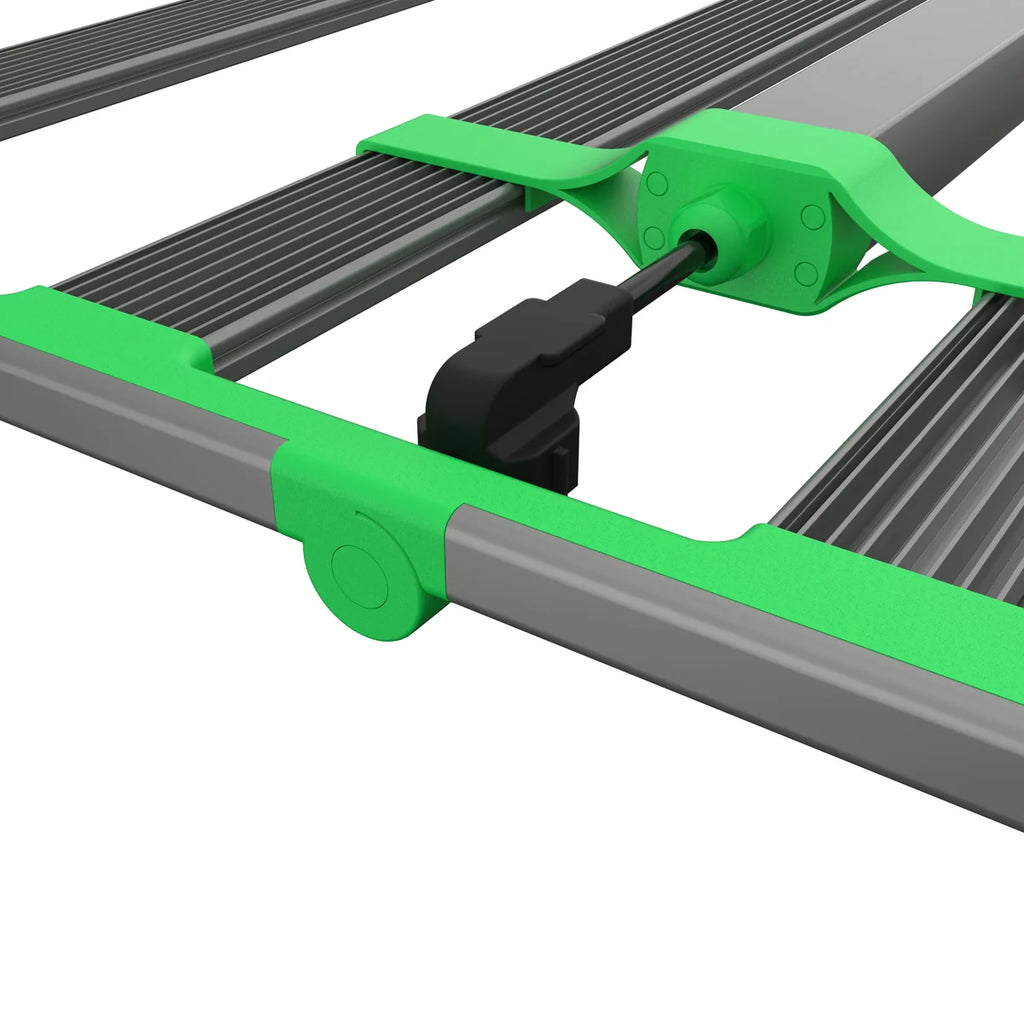

CeresLux Bar X 820W Power Cable Connection Detail
CeresLux Bar X 820W Foldable Hinge and Power Plug Detail
CeresLux Bar X 820W Fully Folded Compact Storage View
CeresLux Bar X 820W Dimmer Knob and RJ Ports Close Up

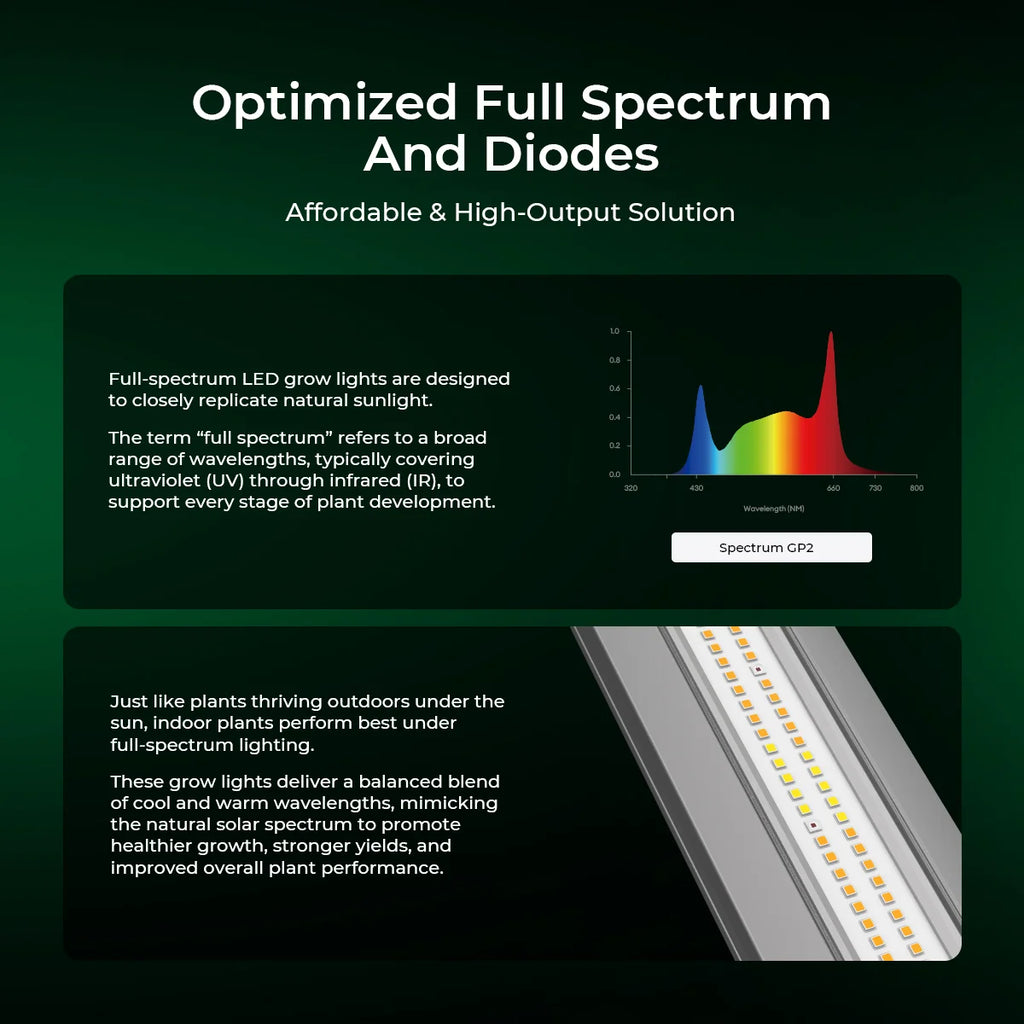

CeresLux Bar X 820W Full Spectrum Diodes Chart
CeresLux Bar X 820W Multi Lights Daisy Chain Dimming Touch Controller
CeresLux Bar X 820W Feature Summary IP54 2 8 PPE Efficiency
CeresLux Bar X 820W Detachable Driver And Built In Dimmer
Roll over image to zoom in Click on image to zoom
CeresLux Bar X 820W LED Grow Light With YieldLab Glasses Bundle
CeresLux Bar X 820W Front Perspective Illuminated Grow Light
CeresLux Bar X 820W Side Profile Unfolded Frame
CeresLux Bar X 820W Perspective View Lit Grow Light Fixture
CeresLux Bar X 820W Underside View 6 Bar LED Arrangement
CeresLux Bar X 820W Top View Frame and Driver Layout
CeresLux Bar X 820W Front View Lit LED Grow Light
CeresLux Bar X 820W Exploded View LED Strip Lens Bar
CeresLux Bar X 820W Power Cable Connection Detail
CeresLux Bar X 820W Foldable Hinge and Power Plug Detail
CeresLux Bar X 820W Fully Folded Compact Storage View
CeresLux Bar X 820W Dimmer Knob and RJ Ports Close Up
CeresLux Bar X 820W Full Spectrum Diodes Chart
CeresLux Bar X 820W Multi Lights Daisy Chain Dimming Touch Controller
CeresLux Bar X 820W Feature Summary IP54 2 8 PPE Efficiency
CeresLux Bar X 820W Detachable Driver And Built In Dimmer

CeresLux Bar X 820W Full Spectrum Commercial LED Grow Light

CeresluxSKU: LED-CX-BAR-X-820


Price:
$439.99
  • Description

Description

Exclusive Limited Time Offer: GrowAce.com customers will receive a FREE pair of Yield Lab LED grow room glasses with the purchase of the CeresLux Bar X 820W Full Spectrum Commercial LED Grow Light ($29.95 value!)


The CeresLux Bar X 820W Commercial LED Grow Light is a high-performance, energy-efficient horticultural lighting system designed specifically for indoor cultivation, hydroponics, and commercial greenhouse operations. Engineered to support crops through their complete life cycle—from seedling and vegetative stages to flowering and harvest—it delivers a balanced full-spectrum light output that maximizes plant health and overall yield.



  • Full-Cycle GP2 Spectrum: Delivers a balanced, high-intensity light spectrum optimized for all growth stages, from early vegetative growth to heavy flowering.



  • High Efficiency & Output: Achieves an energy efficacy rating of 2.8 µmol/J (400–700nm) and a light output (PPF) of up to 2,296 µmol/s.



  • Flexible Dimming Controls: Features an onboard dimming knob alongside 0–10V control compatibility, allowing daisy-chained integration for up to 100 fixtures.



  • Detachable Remote Driver: Simplifies installation and maintenance while keeping excessive driver heat away from the plant canopy.



  • Foldable & Space-Saving Design: Folds in half for easier transport, handling, and storage without sacrificing structural integrity.



  • Passive Thermal Management: Operates silently using passive cooling mechanisms, eliminating noisy fans and reducing mechanical failure risks.



  • Commercial-Grade Certifications: Certified with DLC, ETL (UL8800 standard), CE, and RoHS with an IP54 water/dust-resistance rating.



With an impressive efficacy of 2.8 µmol/J and a total light output of up to 2,296 µmol/s, this fixture delivers powerful, uniform canopy penetration while keeping operational energy costs low. It features a versatile 0–10V dimming system (with an onboard knob) that supports daisy-chaining up to 100 lights, a low-profile foldable frame, and a detachable driver design for seamless installation, thermal management, and straightforward maintenance.



Product Specifications



  • Model: CeresLux Bar X 820W

  • Power Consumption: 820W

  • Input Voltage: AC 120–277V (50/60Hz)

  • Efficacy (PPE): 2.8 µmol/J

  • Light Output (PPF): 2,296 µmol/s (±5%)

  • Spectrum: GP2 Full Spectrum

  • Dimming Control: Onboard Knob & 0–10V External Control

  • Thermal Management: Passive Cooling

  • Power Factor: >0.95

  • IP Rating: IP54

  • Dimensions (Expanded): 42.91″ × 42.13″ × 2.28″

  • Dimensions (Folded): 42.91″ × 21.69″ × 2.56″

  • Mounting Height: ≥0.49 ft (152 mm) above canopy

  • Operating Temperature: 14°F to 104°F (-10°C to +40°C)

  • Lifespan & Warranty: 5-Year Warranty (Q90 > 50,000 hrs)

  • Certifications: DLC, ETL (UL8800), CE, RoHS

  • External Controller: Sold Separately
