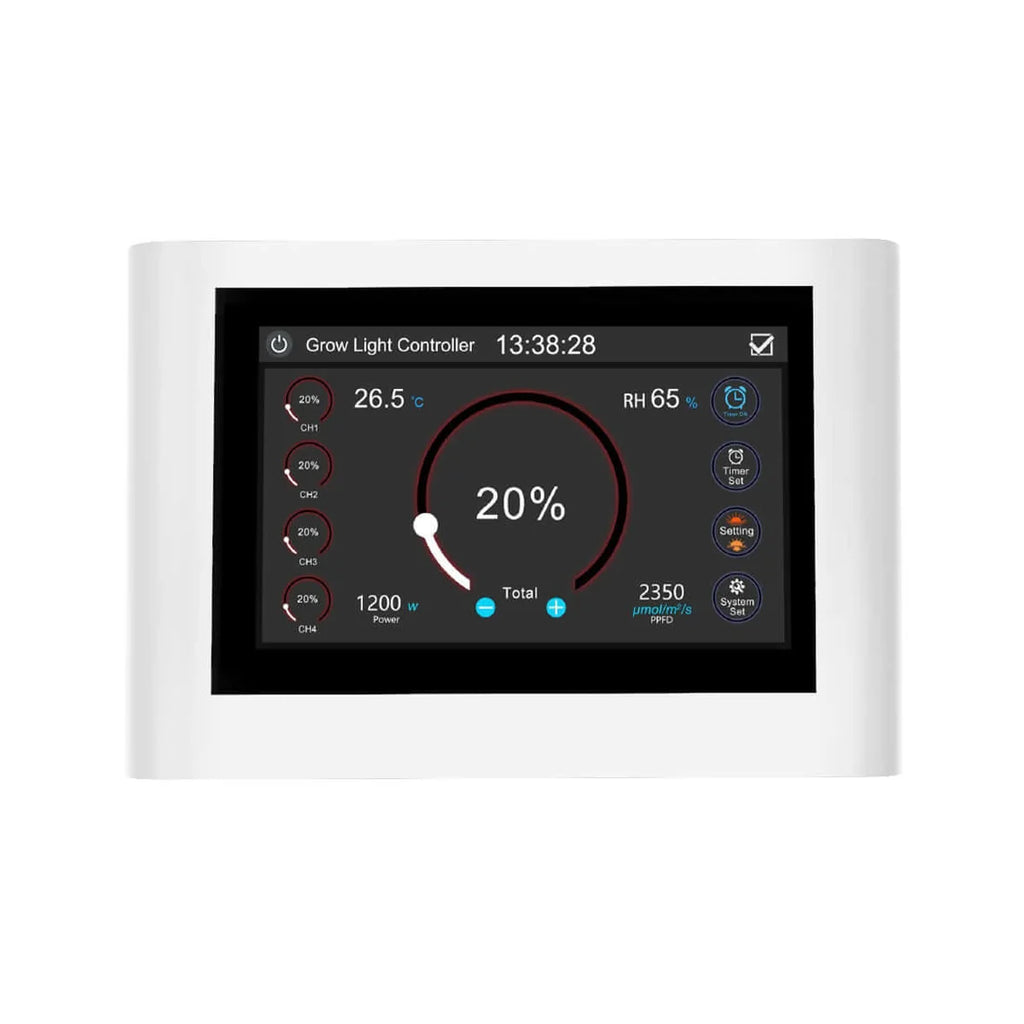

Cereslux Grow Light Controller Front View Displaying 20 Percent Dimming

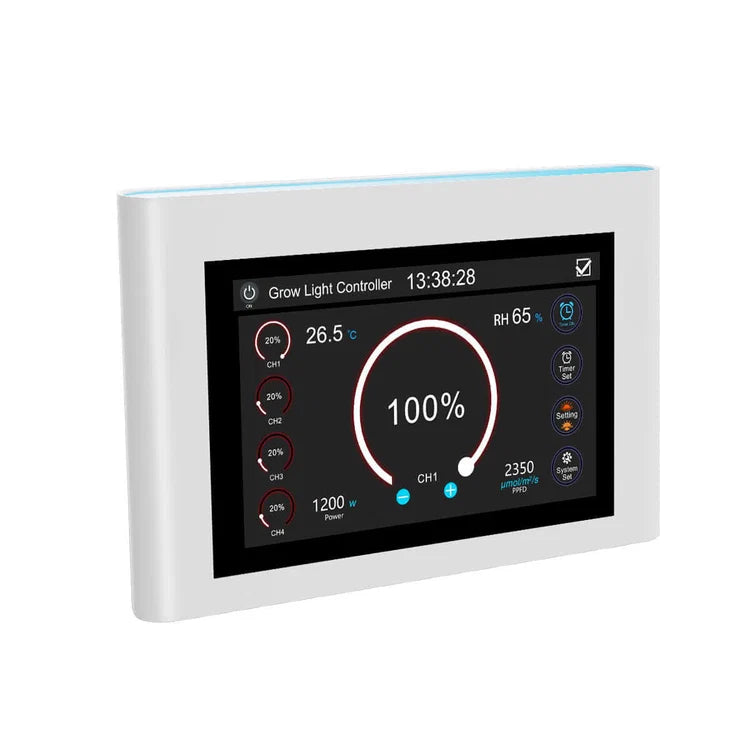

Cereslux Grow Light Controller Front View displaying Real-Time Temperature, Humidity, and Dimming Data
Cereslux Grow Light Controller Side Angle View displaying RJ Communication Ports and Power Jack

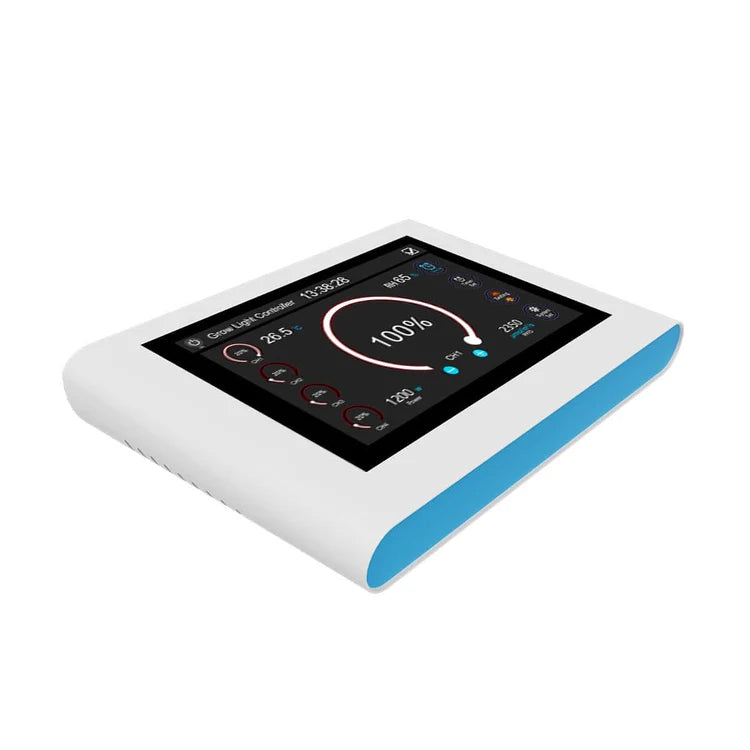

Cereslux Grow Light Controller Perspective View showing Digital Touchscreen Interface

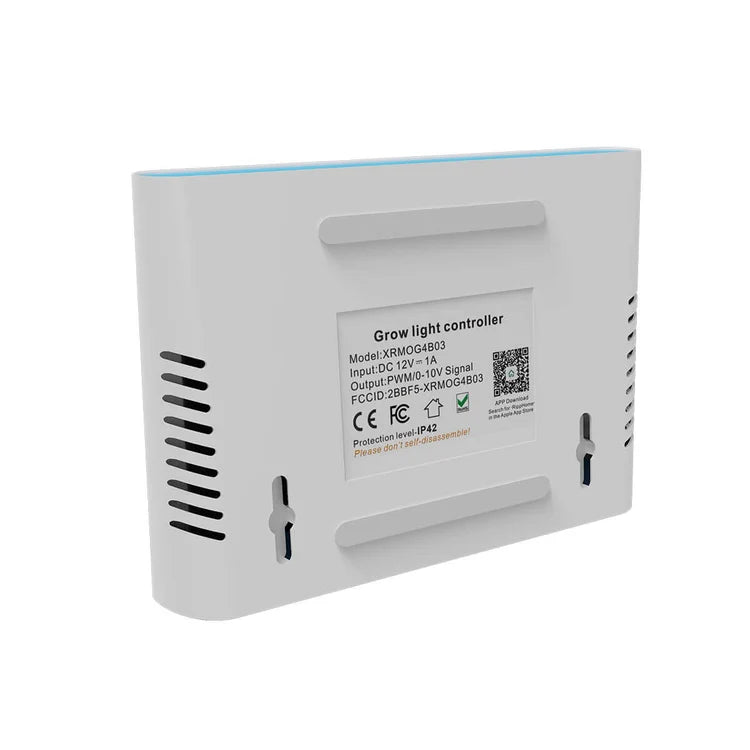

Cereslux Grow Light Controller Back View showing Model XRMOG4B03 and Mounting Slots
Cereslux Grow Light Controller Screen showing Built-in Timer and Multi-Channel PPF Power Settings

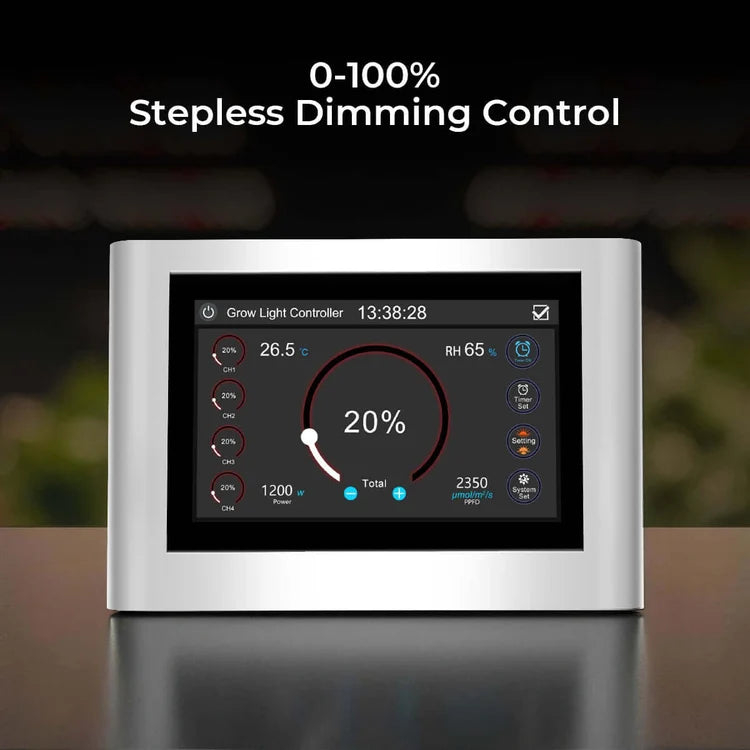

Cereslux Grow Light Controller Displaying 0-100% Stepless Dimming Control Interface

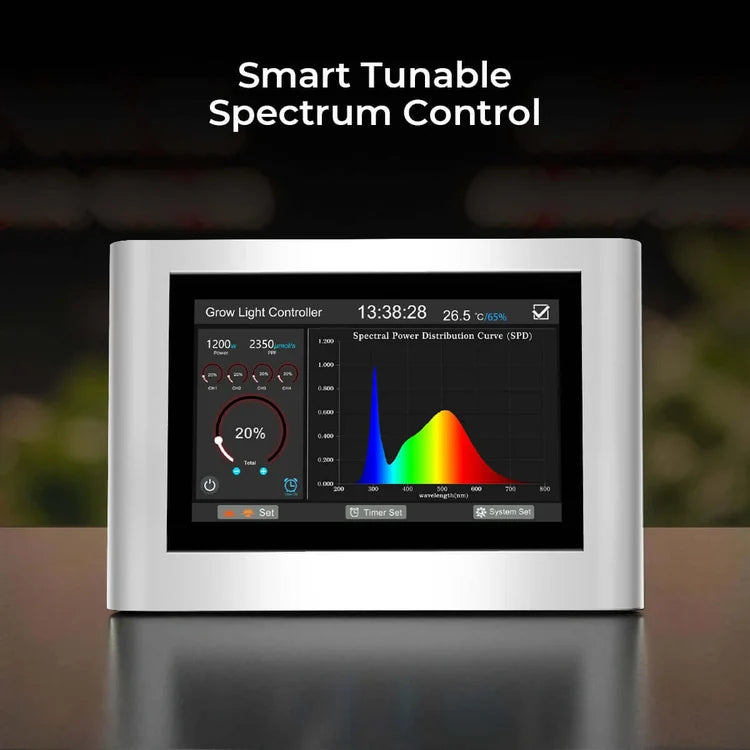

Cereslux Grow Light Controller Displaying Smart Tunable Spectrum and Spectral Power Distribution Curve

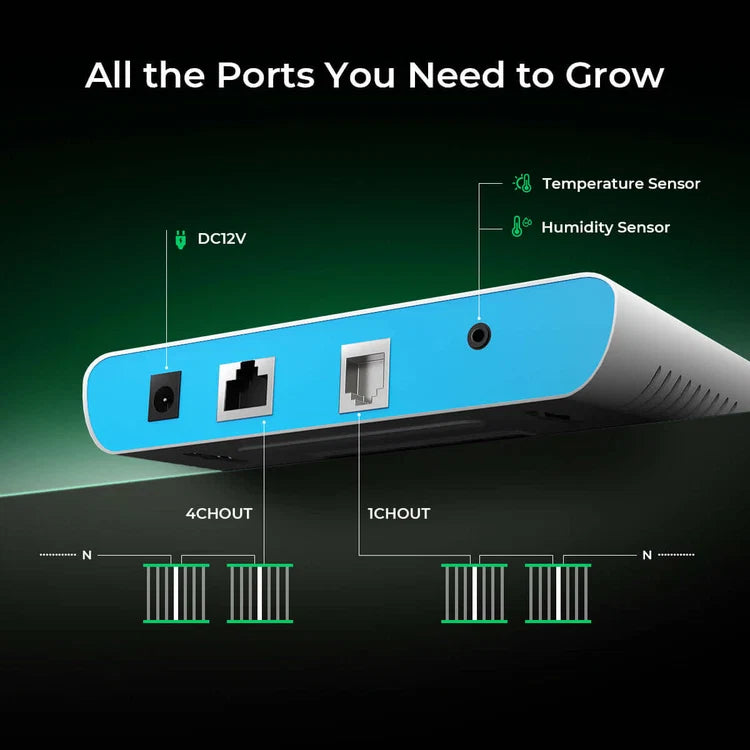

Cereslux Grow Light Controller Connection Ports Diagram Showing DC12V Output Ports and Sensor Jacks
Cereslux Commercial Grow Light Control System Displaying Dynamic Dimming, Full Spectrum, and Sunrise Sunset Simulation
Cereslux LED Grow Light Controller for Smart Indoor Growing Displaying Real-Time Power and Climate Metrics
Cereslux Grow Light Controller Angled Perspective Showing Digital Touchscreen Interface
Roll over image to zoom in Click on image to zoom
CeresLux LED Grow Light Controller With Timer
Cereslux Grow Light Controller Front View Displaying 20 Percent Dimming
Cereslux Grow Light Controller Front View displaying Real-Time Temperature, Humidity, and Dimming Data
Cereslux Grow Light Controller Side Angle View displaying RJ Communication Ports and Power Jack
Cereslux Grow Light Controller Perspective View showing Digital Touchscreen Interface
Cereslux Grow Light Controller Back View showing Model XRMOG4B03 and Mounting Slots
Cereslux Grow Light Controller Screen showing Built-in Timer and Multi-Channel PPF Power Settings
Cereslux Grow Light Controller Displaying 0-100% Stepless Dimming Control Interface
Cereslux Grow Light Controller Displaying Smart Tunable Spectrum and Spectral Power Distribution Curve
Cereslux Grow Light Controller Connection Ports Diagram Showing DC12V Output Ports and Sensor Jacks
Cereslux Commercial Grow Light Control System Displaying Dynamic Dimming, Full Spectrum, and Sunrise Sunset Simulation
Cereslux LED Grow Light Controller for Smart Indoor Growing Displaying Real-Time Power and Climate Metrics
Cereslux Grow Light Controller Angled Perspective Showing Digital Touchscreen Interface

CeresLux WB01 LED Grow Light Controller With Timer

CeresluxSKU: LED-CX-WB01-CTRL


Price:
$299.99
  • Description

Description

The CeresLux Smart LED Grow Light Controller with Timer is an advanced environmental and lighting management system designed to streamline indoor cultivation and commercial greenhouse operations. Featuring an intuitive touchscreen interface and dual-zone control, this master controller automates light schedules, dimming levels, and simulated natural day cycles without requiring manual adjustments across individual fixtures.



  • Dual-Zone Independent Control: Manages two distinct lighting zones (Zone A/B) simultaneously with customized timing, light schedules, and dimming levels for different crop stages.



  • Large Touchscreen Interface: Features an easy-to-read, user-friendly digital display for real-time monitoring of light intensity, photoperiods, temperature, and humidity metrics.

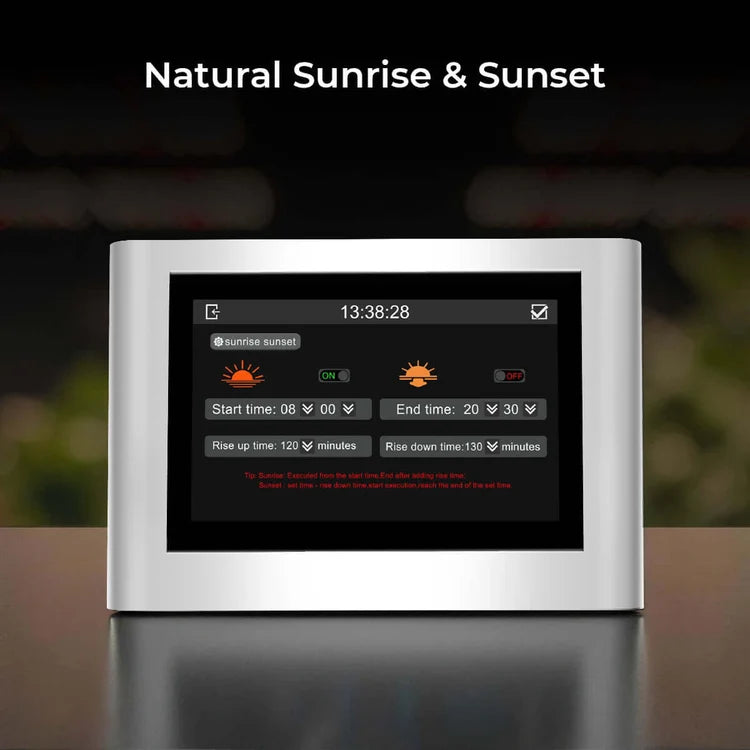

  • Sunrise and Sunset Simulation: Gradually ramps light intensity up and down (0–100%) to mimic natural outdoor light transitions and prevent plant light shock.



  • Smart Auto-Dimming & Over-Temp Protection: Automatically dims or shuts down connected lighting fixtures if room ambient temperatures exceed pre-set safety thresholds.



  • 0–10V Dimming Compatibility: Utilizes universal 0–10V RJ connections, making it fully compatible with most commercial dimmable LED grow light brands.



  • High-Capacity Daisy-Chaining: Supports controlling up to 100+ grow light fixtures per channel using simple RJ11/RJ12 daisy-chain data interconnect cables.



  • Integrated Climate Sensor Tracking: Includes precise external temperature and relative humidity probes to keep real-time track of ambient canopy climate parameters.





Engineered with intelligent safety safeguards and high scalability, the controller continuously tracks canopy environment conditions using precision temperature and humidity sensors. By delivering dual 0–10V analog channels, high fixture capacities, and automatic emergency dimming protocols, it protects crops against heat stress while reducing energy costs and maximizing operational efficiency.



Product Specifications



  • Model: CeresLux Smart LED Grow Light Controller

  • Control Output Signal: Dual Channel 0–10V Analog Signal

  • Maximum Fixture Capacity: Up to 100 fixtures per channel (200+ fixtures total across Zones A & B)

  • Display Type: Digital LCD / Touchscreen Display

  • Input Voltage: AC 100–240V, 50/60Hz (DC 5V/2A Adapter)

  • Dimming Range: 0% – 100% (or Off / 10% – 100% depending on fixture)

  • Timing & Cycle Range: 24-Hour Digital Clock with Customizable On/Off Photoperiods

  • Sunrise/Sunset Duration: 1 to 60 Minutes (User Adjustable)

  • Sensor Support: External Temperature Probe & Humidity Sensor

  • Safety Protocols: Auto-Dimming Over-Temp Protection & Auto Emergency Shutdown

  • Port Type: Dual RJ11 / RJ12 Signal Ports

  • Connectivity Cable: Standard RJ Daisy-Chain Cables Included

  • Operating Temperature: 32°F – 104°F (0°C – 40°C)

  • Certifications: CE, RoHS, FCC

  • Warranty: 2-Year Limited Warranty
