Description

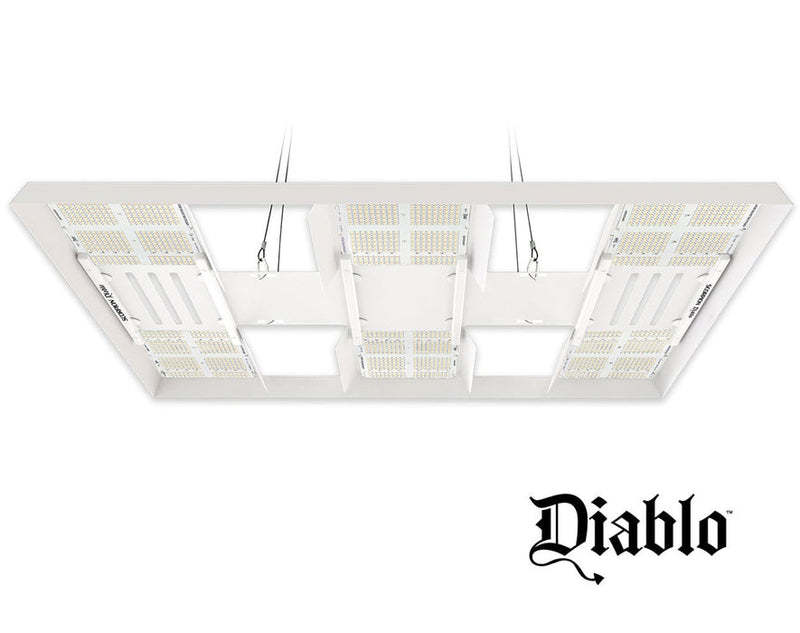

The HLG Scorpion Diablo LED Grow Light is a high-efficiency, full-spectrum commercial fixture designed to maximize crop yields, particularly in applications with low ceiling heights, such as vertical racks and grow tents. It is engineered with six advanced Diablo Quantum Boards® to ensure an even and powerful light distribution over the entire grow area. The light boasts an exceptional performance with a total output of over 2,100 PPF (Photosynthetic Photon Flux) and a high photon efficacy of approximately 3.0 µmol/J. With a maximum power consumption of 715 watts, the fixture is designed to provide light intensity and coverage equivalent to a 1000-watt double-ended HID system. Its recommended flowering footprint is a 5' x 5' area, and it can cover a 6' x 6' area for vegetative growth.
-
High Output: The fixture delivers a total output of 2121 PPF (Photosynthetic Photon Flux) with an exceptionally high efficiency of approximately 3.0 µmol/J.
-
Coverage Area: It is engineered to provide ideal light coverage for a 5' x 5' space during the flowering stage and a 6' x 6' space during the vegetative stage.
-

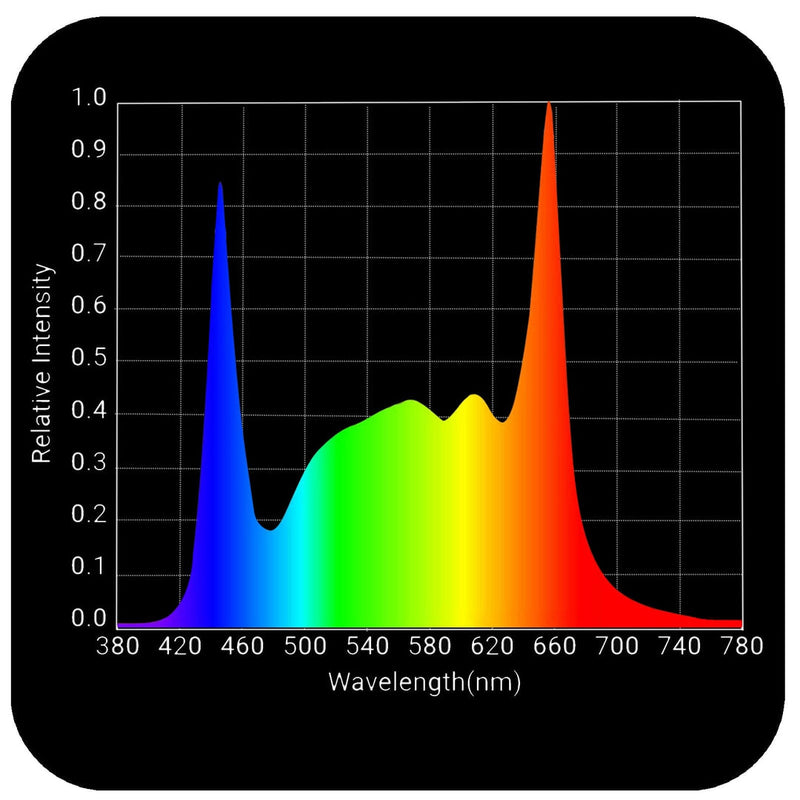

Spectrum: The light features a full white spectrum augmented with high-intensity 660nm deep red diodes to support all phases of plant growth.
-
Dimming Control: Thhttps://www.youtube.com/watch?v=Tv4qHP01FSI light is fully dimmable from 0-715 Watts and includes an RJ port for easy connection to external 0-10V environmental controllers.
-
Design & Reliability: The fixture uses a reliable passive-cooled design for silent operation and is backed by a 5-year manufacturer's warranty.

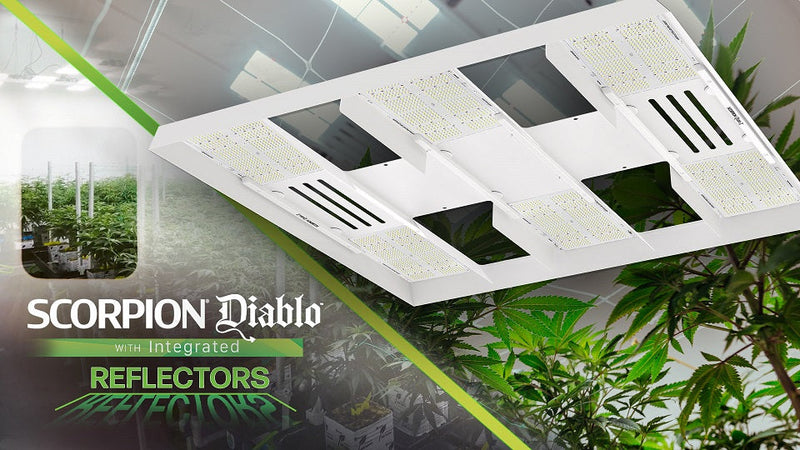

This LED grow light features a plant-centric white spectrum complemented by 660nm deep red diodes, offering a complete spectral solution for all stages of plant development, from seeding to flowering. A key design element is the inclusion of integrated reflectors, which significantly improve photon delivery to the lower levels of the canopy, enhancing light penetration and overall yield quality. The fixture operates with a reliable passive-cooled design, eliminating the noise and heat associated with active cooling fans, which is ideal for tight growing environments. It is highly versatile, featuring a dimmable power supply that allows for intensity adjustments (0-715W) and an auto-sensing capability to work on 120VAC, 240VAC, and 277VAC power systems. The product is also UL and DLC listed and is covered by a 5-year manufacturer's warranty.
>>HLG Scorpion Diablo Manual<<
>>Efficiency Lab Report<<
>>PPFD Report<<

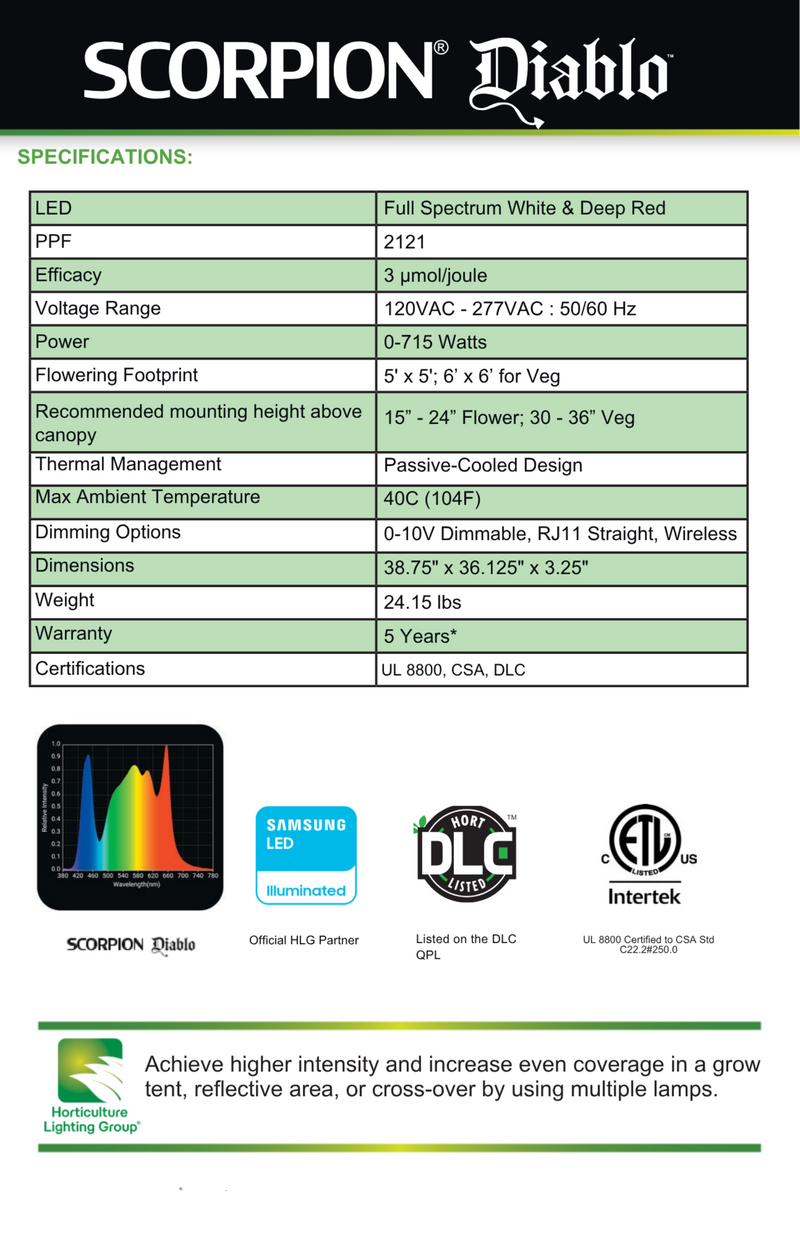

Specifications
-
Power: 0-715 Watts
-
Voltage Range: 120-277 VAC 50-60Hz
-
Flowering Footprint/ Canopy Distance: 5' x 5' / 15" - 24"
-
Veg Footprint/ Canopy Distance: 6' x 6' / 30” - 36"
-
System PPF Efficacy: 2.97 μmol/J
-
Total output: 2121 PPF
-
Dimensions: 38.75" x 36.125" x 3.25"
- Certifications: UL 8800, UL 1598 damp location, DLC
