Description

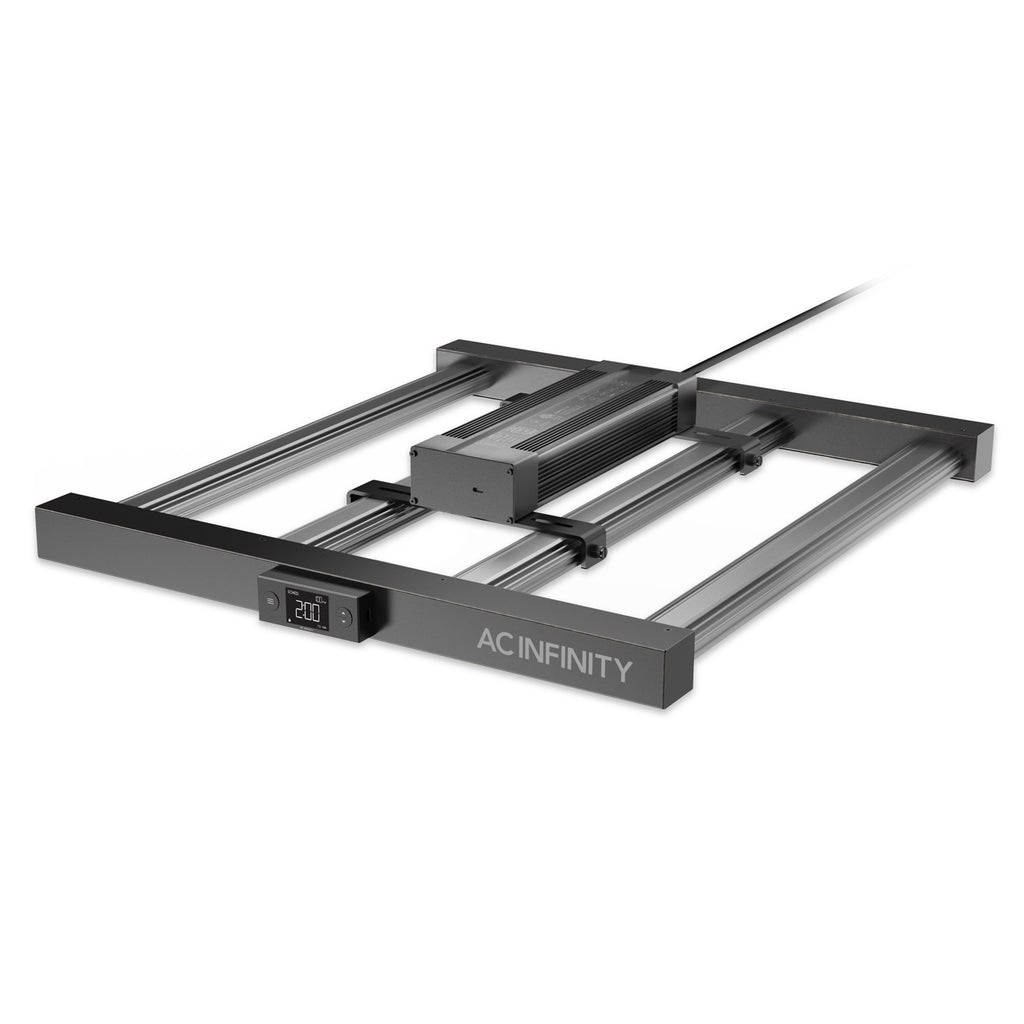

This IONFRAME EVO4 300W LED Grow Light uses highly efficient Samsung LM301H EVO diodes in a bar-style fixture for uniform lighting and maximum yield in grow tents. It's built tough (IP-65 rated) and features a removable driver for better heat management. As part of the UIS™ platform, it includes a smart controller for scheduling and supports daisy-chaining multiple units.
-
Chip Technology: Uses ultra-efficient Samsung LM301H EVO LEDs, rated at 3.14 µmol/J PPE, which is the highest efficiency available compared to LM301B, LM301H, and Bridgelux 3030 chips.
-
Smart Control: Fully compatible with the UIS™ platform, allowing for WiFi app control of features like scheduling, sunrise/sunset dimming, and 10 distinct brightness levels.
-

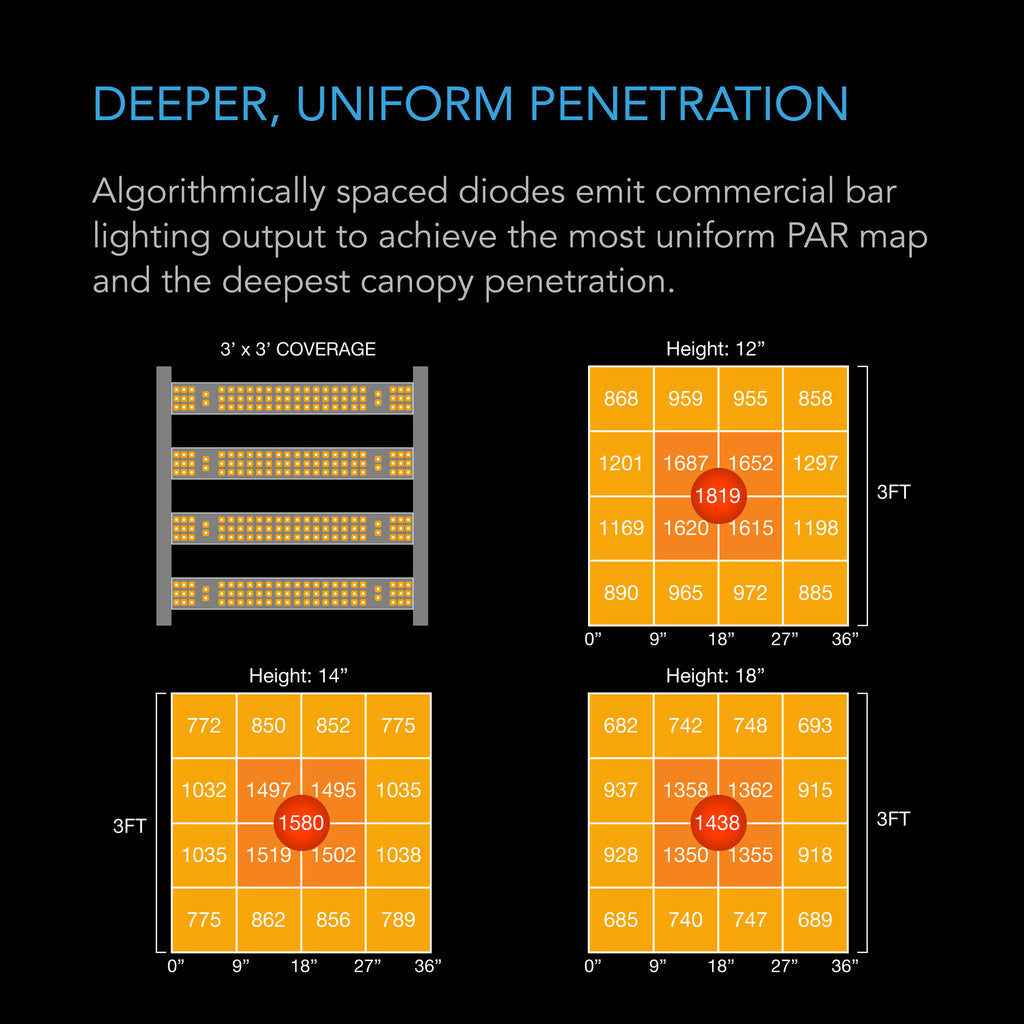

Fixture Design: A bar-style fixture with 896 algorithmically spaced diodes optimized to ensure even light coverage, deep canopy penetration, and effective hotspot reduction.
-
Thermal Management: Features a passively cooled, removable LED driver to balance heat, and is capable of daisy-chaining up to 80 grow lights.
-
Performance Metrics: Delivers 1819 PPFD at 300W, covering a 4 x 4 ft. area for vegetative growth and 3 x 3 ft. for flowering.
This LED grow light utilizes Industry-Leading Samsung LM301H EVO diodes for maximum brightness and efficiency, outperforming older chips like the LM301H/B. The EVO diodes boost plant growth with superior light quality, higher light output, and a more pronounced blue spectrum. The full spectrum is completed by additional UV and OSRAM far-red diodes (395 nm, 660 nm, and 730 nm). For Schedule and Brightness Controls, the light includes a controller offering 10 intensity levels, scheduled cyclical activation, and an innovative sunrise/sunset feature for gradual dimming. Furthermore, integrating the light with an advanced UIS controller (like the CONTROLLER 69 PRO) unlocks full WiFi app control, advanced automation, and grow recipes via the AC Infinity app.

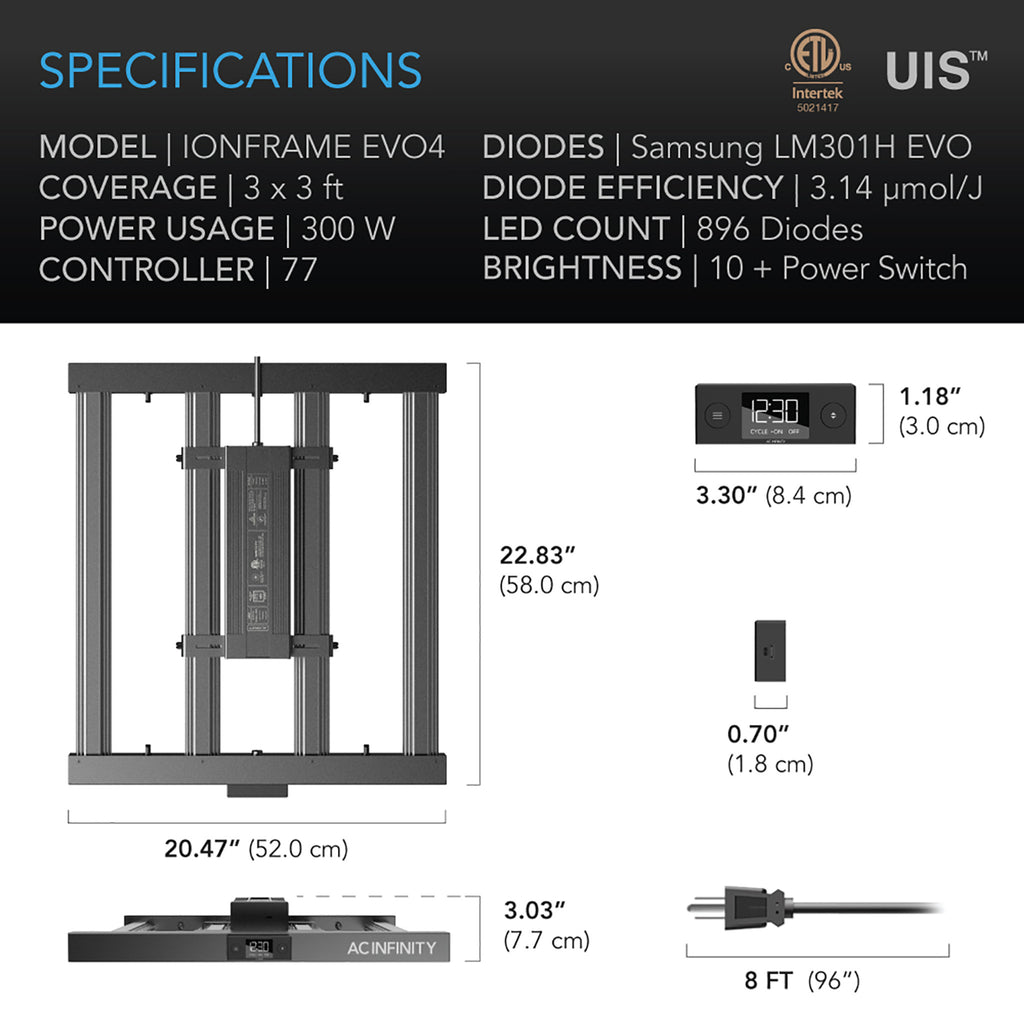

Product and Mounting Dimensions - Controller
- Light Dimensions 20.47" x 22.83" x 2.99"
- Driver Dimensions 7.16" x 1.57"
Product Performance and Technical Specs
- Coverage 3 x 3 ft.
- Diodes Samsung LM301H EVO
- Spectrum 395nm, 660nm, 730nm, 3000K, 5000K
- Chip Count (Total) 896
- Chip Count (EVO 3000K) 360
- Chip Count (EVO 5000K) 500
- Chip Count (Seoul 395 nm) 4
- Chip Count (OSRAM 660 nm) 28
- Chip Count (OSRAM 730 nm) 4
- LED Driver SOSEN-320W
- Efficiency (Single Diode) 3.14 µmol/J
- PPFD 1819 PPFD
- Wattage 300 W
- Voltage 100-277V AC
- Frequency 50/60 Hz
- Amps 3.0 A
- Controller Schedule Controller
- Power Connector Type US Plug (NEMA 1-15 Type-A)
- Operating Humidity 35 to 85% RH
- Operating Temperature 32 to 140°F
- Waterproof Rating IP-65
- Life Expectancy 50,000 Hours
