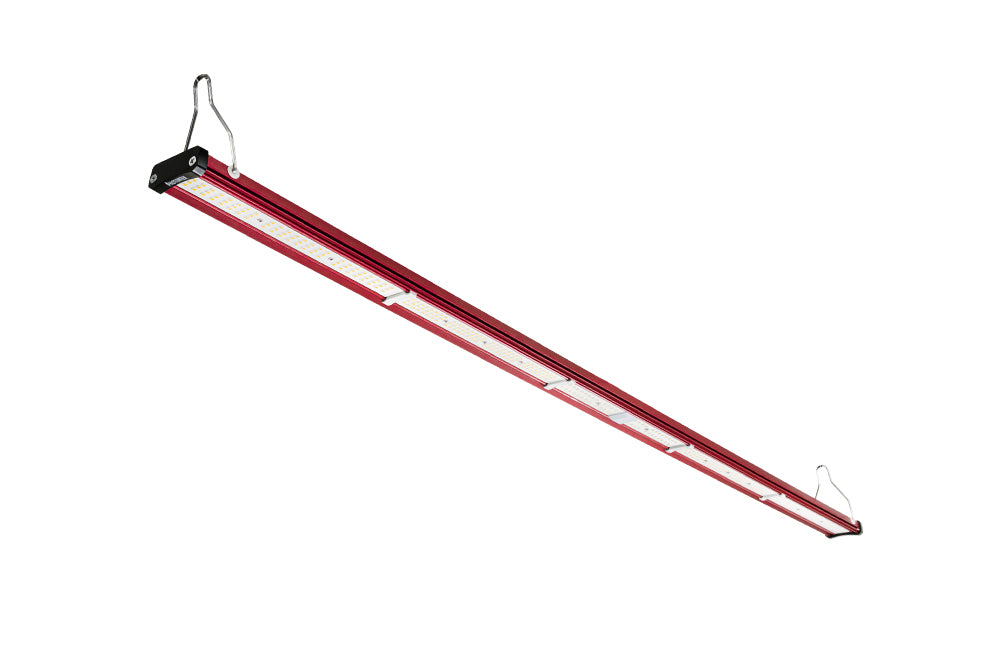

The PhotonTek® 100W Full-Spectrum Supplemental LED Light Bar is a modular, high-efficiency supplemental light bar designed to increase light intensity, eliminate shadow zones, and enhance overall canopy penetration in commercial and home grow setups. Operating at a power draw of 100 watts, this versatile bar delivers a photon flux output of 295 µmol/s at a high photon efficacy of 2.95 µmol/J. It is engineered as a flexible expansion unit that can be mounted directly onto existing grow light fixtures or hung independently to target side-canopy foliage and under-canopy growth.



Key Features

• High-Efficiency Photon Boost: Produces 295 µmol/s PPF at an impressive 2.95 µmol/J efficacy to maximize PAR density without excessive power draw.



• Versatile Modular Application: Designed as a supplemental light bar to eliminate dark corners, target lower canopy leaves, or expand fixture footprints.



• Full-Spectrum Balanced Light: Features top-tier Lumileds white and Osram deep red diodes to support both vegetative growth and flowering phases.



• Flexible Mounting Options: Easily attaches to existing PhotonTek frames or hangs independently using universal mounting hardware.



• IP65 Water & Dust Resistant: Protective clear glue coating shields LED diodes against moisture, direct misting, and high-humidity grow environments.



• Passive Thermal Management: Heavy-duty extruded aluminum frame ensures optimal heat dissipation without noisy mechanical cooling fans.



• Daisy-Chain Connectivity: Integrated power and dimming connection capability allows synchronized operation across multiple supplemental bars.

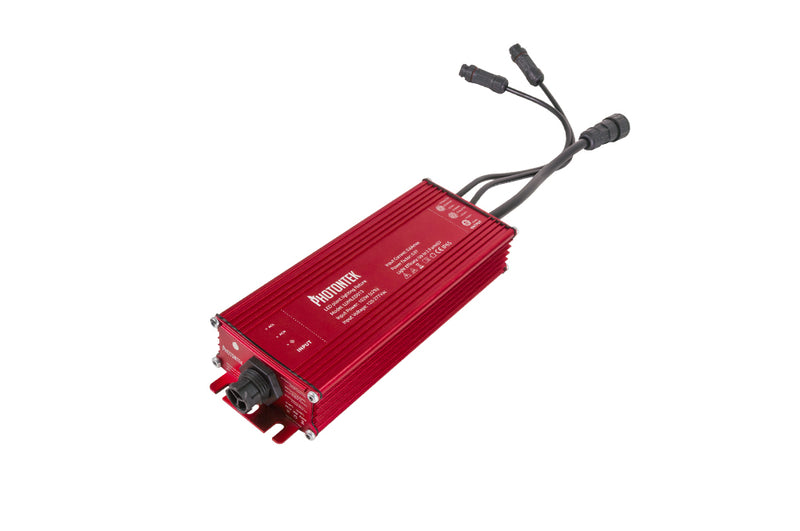

Equipped with premium Lumileds white LEDs and Osram 660nm deep red diodes, the 100W Supplemental Bar provides a sunlike, full-phase spectrum that complements existing lighting arrays to boost photosynthetic rates and floral development. Built with a slim aluminum heat sink for passive thermal dissipation, clear glue diode protection (IP65 waterproof rated), and an internal driver, it offers simple plug-and-play installation for vertical racks, greenhouses, and indoor grow rooms.

Product Specifications

• Model: 100W Full-Spectrum Supplemental LED Light Bar (PTEKLED020)

• Power Consumption: 100W ±5%

• PPF Output: 295 µmol/s

• Photon Efficacy (PPE): 2.95 µmol/J

• Light Source: Lumileds (White) & Osram (660nm Red) Diodes

• Target Coverage: Supplemental lighting for 4' × 4' to 5' × 5' grow areas

• Input Voltage: AC 120V – 277V (50/60Hz)

• Amperage Draw: 0.83A @ 120V | 0.42A @ 240V | 0.36A @ 277V

• Dimming Control: 0–10V Dimmer Compatible / Daisy-Chain Supported

• Waterproof Rating: IP65 Water & Dust Resistant

• Beam Angle: 120°

• Dimensions: 44.8" L × 3.3" W × 3.0" H (113.8 cm × 8.4 cm × 7.6 cm)

• Product Weight: ~7.3 lbs (3.3 kg)

• Lifespan: > 60,000 Hours (L90)

• Warranty: 5 Years Standard Warranty
