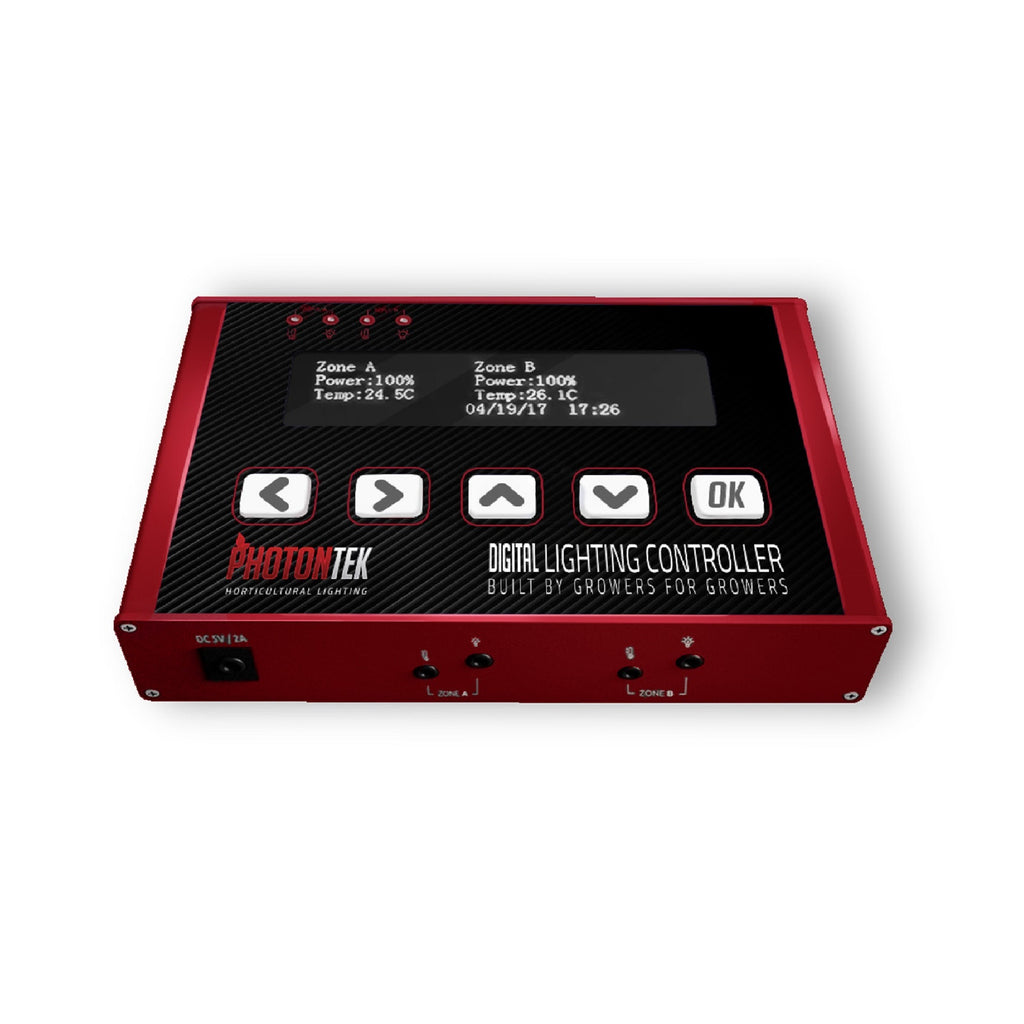

The Photontek Digital Controller is a full-control LED fixture master panel, which enables you to control the power of the entire LED lighting range. This digital controller is manufactured from the perspective of being user-friendly and energy-efficient. The PhotonTek Digital Lighting Controller is eco-friendly, offers great performance, and will last you for years.

• Compatible: The Controller is fully compatible with PhotonTek Controllable LED drivers and fixtures of 465W,600W & 1000W.
• Perfect Lighting: This unit has 24hr light scheduling and switching and the ability to imitate sunrise & sunset periods and natural environments.
• Temperature: You can easily control the dimming and switching for safety controls.
• Automate Light Intensity: It enables you to adjust PPFD totals for specific times.

The PhotonTek Digital Lighting Controller is the newest smart-tech panel that offers industry-leading performance. This controller constantly monitors your entire LED lighting range and helps maintain automated environmental temperatures and lighting schedules. So, you can easily adjust the illumination intensity of the whole house, including controlling interior and exterior lighting.

This unit is a twin channel controller. It can control individual zones and operate up to 50 LED fixtures each. The control panel for this PHL unit is for up to 100 LED drivers and has accurate dimming control of increments of 1%.

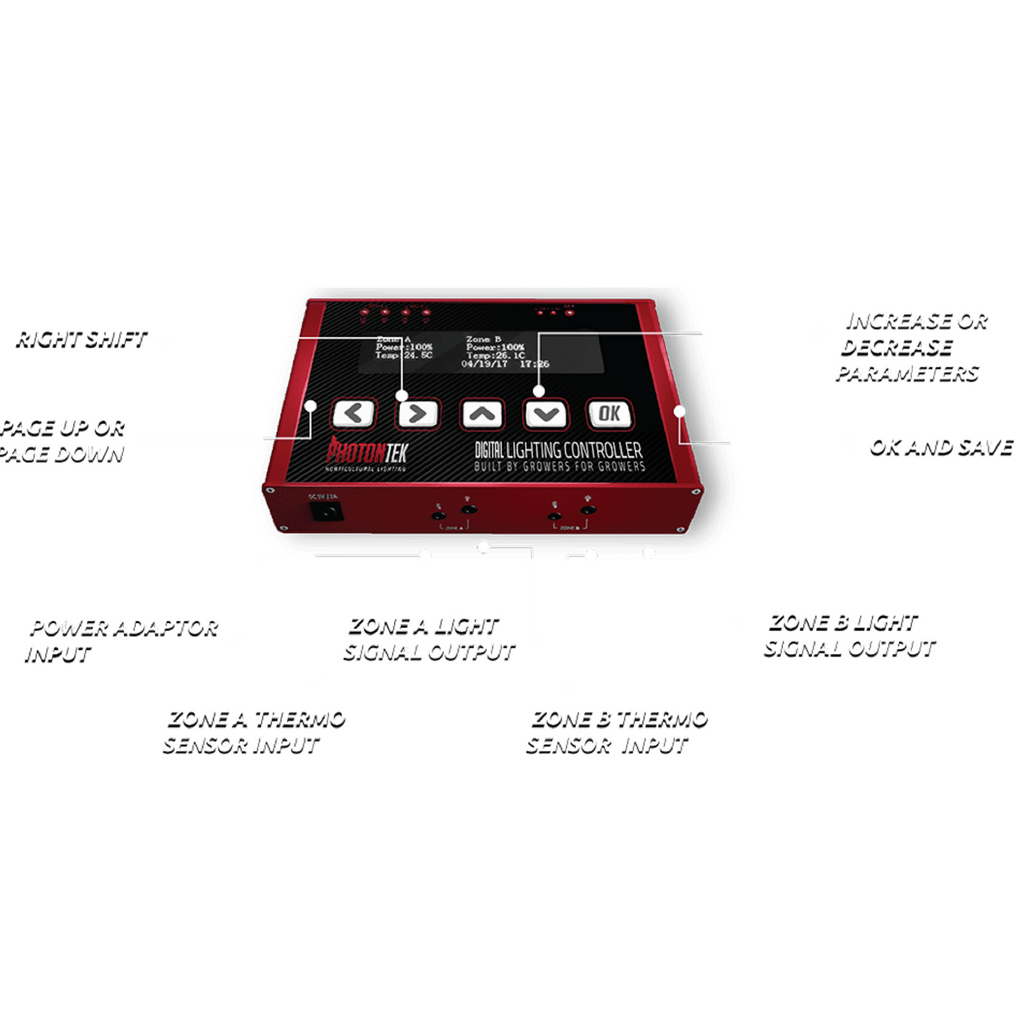

The PhotonTek Digital Controller has all these keys, making it easy to use. It includes right shift, page up & page down, power adaptor input, Zone A & B thermo sensor input, Zone A & Zone B light signal output, ok and save keys and increase or decrease parameters.

The PhotonTek Digital Controller is a high-tech unit, and its unmatched quality and advanced features enable growers to save about 40% of their energy bills.

Using an equivalence 0-10V signal: each Zone of this unit can perfectly control the same-charged LED drivers. Zone A can run the same-powered drivers as Zone B, AND Zone B can be set to be in charge of different powered LED drivers.

 E.g., Zone A can be set to control 465W LED fixtures, and Zone B can be set to control 600W, with the same accuracy and safety protections across your entire set-up.

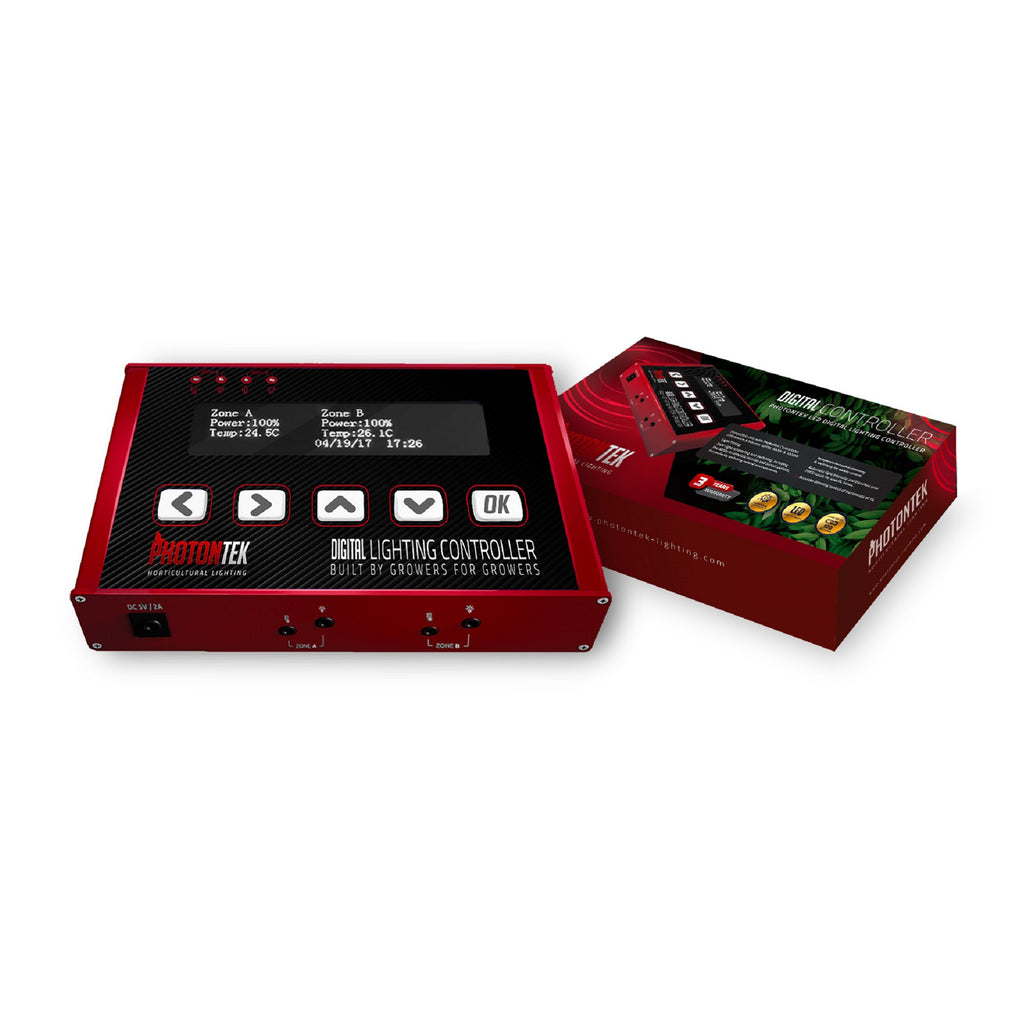

The entire PhotonTek Digital Controller Kit comes with: 1 X PHOTONTEK Control Panel Plus, 1 X PhotonTek Digital Controller, 1 X Power adaptor and cable, 2 X Temperature sensor 5m cable and 2 X LED control link cable.

Specifications:

• SKU/Model No.: PHL-CONTROLLER

• Product Code: PTEKM0017

• Power: Adaptor 100 - 277V AC 50/60Hz - DC 5V/2A

• Match LED Driver: All PhotonTek Controllable LED Drivers

• Power Dimming Range: 0%, 10% - 100%

• Power Regulation Accuracy: 1%

• Temperature-controlled Safety Dimming Range: 0*C-40*C

• Temperature-controlled Safety Switching Range: 10*C-50*C

• Sunrise and Sunset Duration: 0-30 min

• Dimensions: 125 X 80 X 25mm
