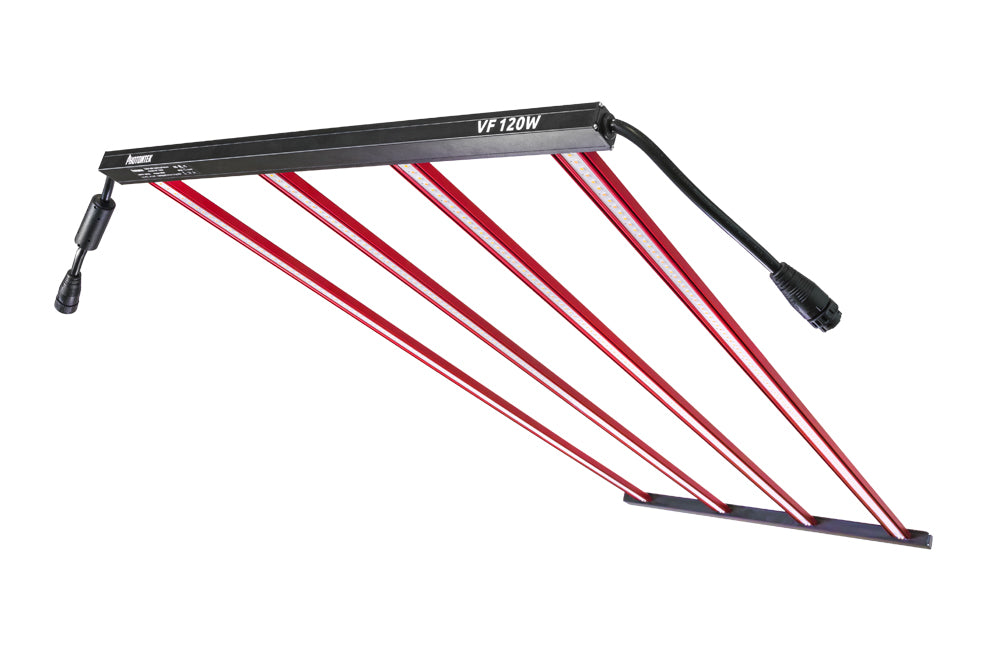

The PHOTONTEK VF 120W LED is a high-performance fixture from the Vertical Farming (VF) Range, purpose-built to deliver precise, high-efficacy lighting for clones, seedlings, and low-PPFD target crops. With an impressive efficacy of 2.4 µmol/J and a total output of 308 µmol/s PPF, this 120W unit is designed for energy-efficient use in multi-layer propagation factories, nurseries, climate chambers, and vertical warehouse farms. It features four 30W LED bars using a balanced blend of high-spec 4000K White and 3000K Warm White diodes (Spectrum G), promoting strong root development and uniform early plant growth. The low-profile, long-format design (47.5 inches) and silent passive cooling are ideal for maximizing space in vertical racks.

• High Efficacy & Output: Delivers 308 µmol/s PPF at an efficient 2.4 µmol/J.

• Targeted Spectrum: Uses Spectrum G (4000K White & 3000K Warm White) optimized for propagation, clones, and low-PPFD plants.

• Vertical Farming Design: Low-profile dimensions (47.5 inches long) and passive cooling maximize space in multi-layer setups.

• Integrated System: Requires the VF 650W Driver (Sold Separately), which can power up to five VF 120W units simultaneously.

• Dimmable & Durable: Fully dimmable via the driver and features an IP65 rating for water and dust resistance.

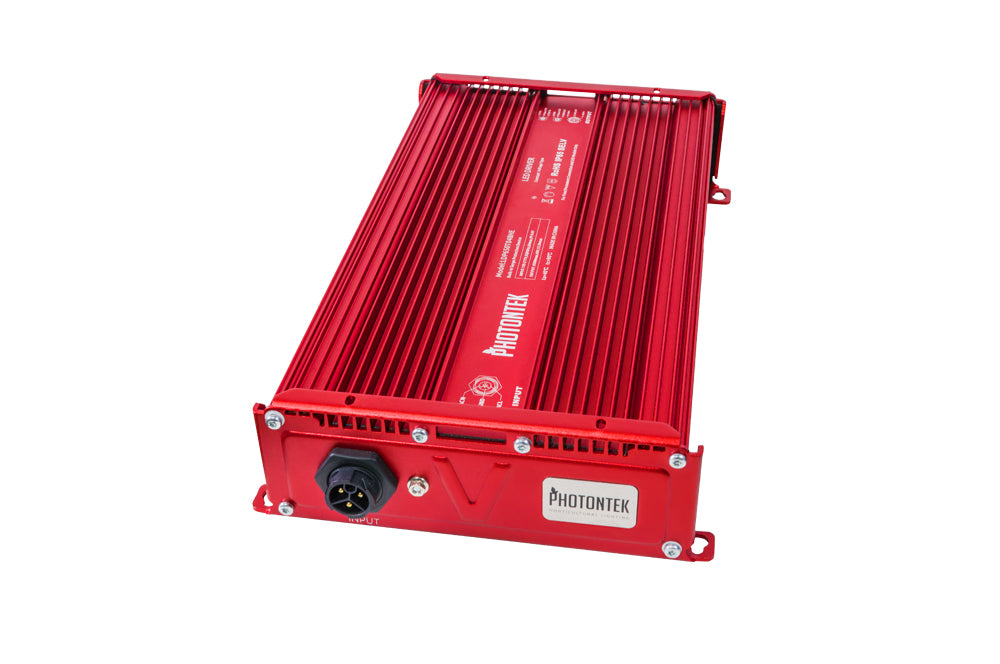

To operate, the VF 120W requires a separate power source: the PHOTONTEK VF 650W Driver (Sold Separately), which serves as the central control unit. A single VF 650W Driver is capable of powering up to five VF 120W fixtures, streamlining setup and allowing for in-series daisy-chain connectivity and centralized power management. The fixture supports full dimming (OFF-25-50-75-100%) and external control via a universal 0-10V signal, ensuring precise light intensity adjustment throughout the plant's early growth stages. Enhanced by a clear glue protection cover on the LEDs, the fixture achieves an IP65 rating for durability and easy maintenance in damp environments.

SOLD SEPERATELY:
VF 650W DRIVER
Extension Cable for VF Fixture LED 6.5 ft (Female-Male)

Product Specifications

• Efficacy: 2.4 µmol/J

• PPF Output: 308 µmol/s

• Input Power: 130W (± 5%)

• Input Voltage: 120-277 V AC, 50-60 Hz

• Light Source: High Spec White & Warm White Diodes

• Spectrum: Spectrum G (Propagation/Vegetative)

• Dimming: OFF-25-50-75-100% (Controlled by VF 650W Driver)

• Thermal Management: Passive (Fanless)

• IP Rating: IP65

• Lifetime: L90 > 60,000 hrs

• Weight: 4.62 lbs (2.1 Kg)

• Dimensions: 47.5'' x 20.5'' x 0.8'' (1207 x 521 x 20.5 mm)
