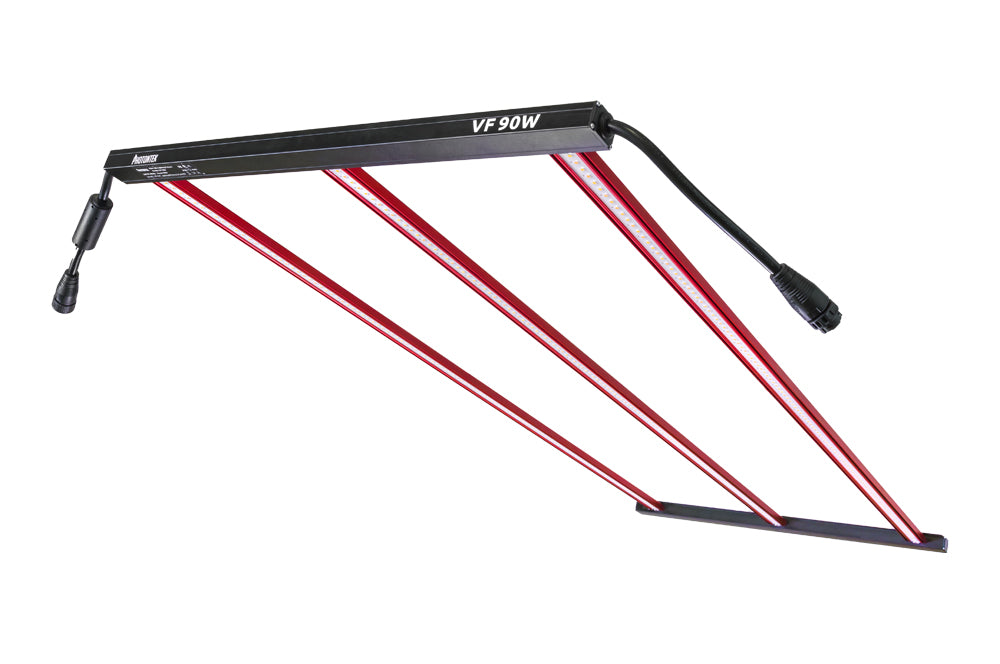

The PHOTONTEK VF 90W LED is a dedicated solution from the Vertical Farming (VF) range, meticulously designed for compact and multi-layer cultivation systems. This high-efficiency fixture delivers a powerful 244 µmol/s PPF with an impressive efficacy of up to 2.4 µmol/J, making it ideal for propagation, nurseries, climate chambers, and vertical warehouse farms. The fixture uses a specialized Spectrum G, featuring high-spec white and warm white diodes, to ensure high-quality light for all vegetative stages of growth. Its sleek, low-profile design (47.5 inches long) and passive cooling system allow for installation in tight spaces, maximizing the vertical grow capacity without the risk of overheating.

• High Efficacy: Achieves an impressive efficacy of 2.4 µmol/J and a PPF output of 244 µmol/s.

• Vertical Farming Optimized: Designed specifically for vertical racks, propagation, and nurseries with a low-profile, long form factor.

• Integrated System: Requires the VF 650W Driver (Sold Separately) to operate, which can power up to seven VF 90W units.

• Dimmable & Controllable: Dimmable via the main driver (OFF-25-50-75-100%) and compatible with a universal 0-10V external controller.

• Durable and Efficient: Features clear glue protection technology for 99% light transmittance, an IP65 rating, and fanless passive cooling.

The VF 90W is engineered for flexible, large-scale integration into commercial setups. Crucially, the fixture does not operate independently; it requires the purchase of the PHOTONTEK VF 650W Driver (Sold Separately), which is capable of powering up to seven VF 90W fixtures simultaneously. This setup streamlines power management and enables full dimmability (OFF-25%-50%-75%-100%) directly from the main driver's knob. The light bar uses an innovative clear glue protection cover on the LEDs, which enhances light transmittance to 99% and provides an IP65 rating for durability in damp environments.

SOLD SEPERATELY

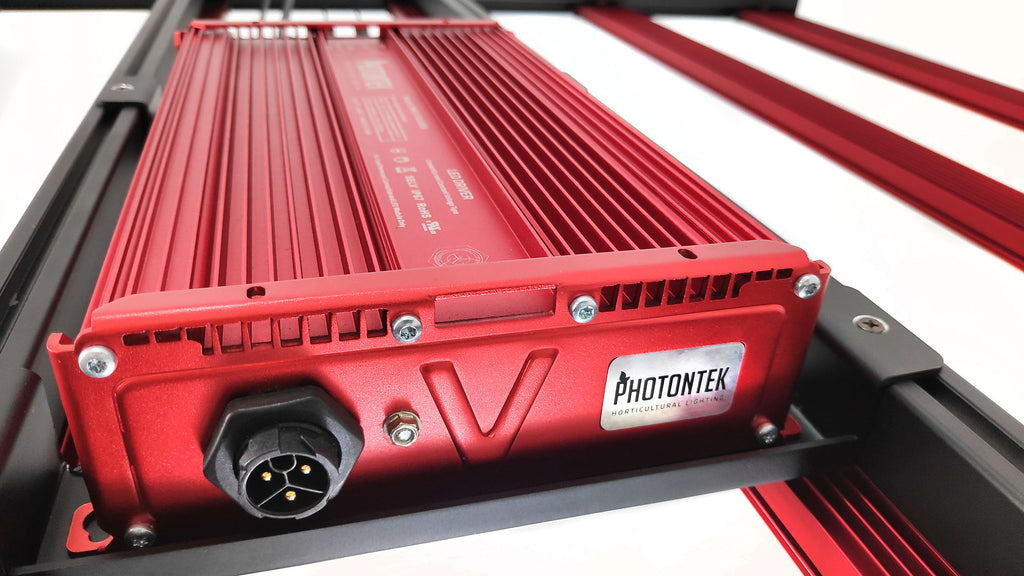

VF 650W DRIVER

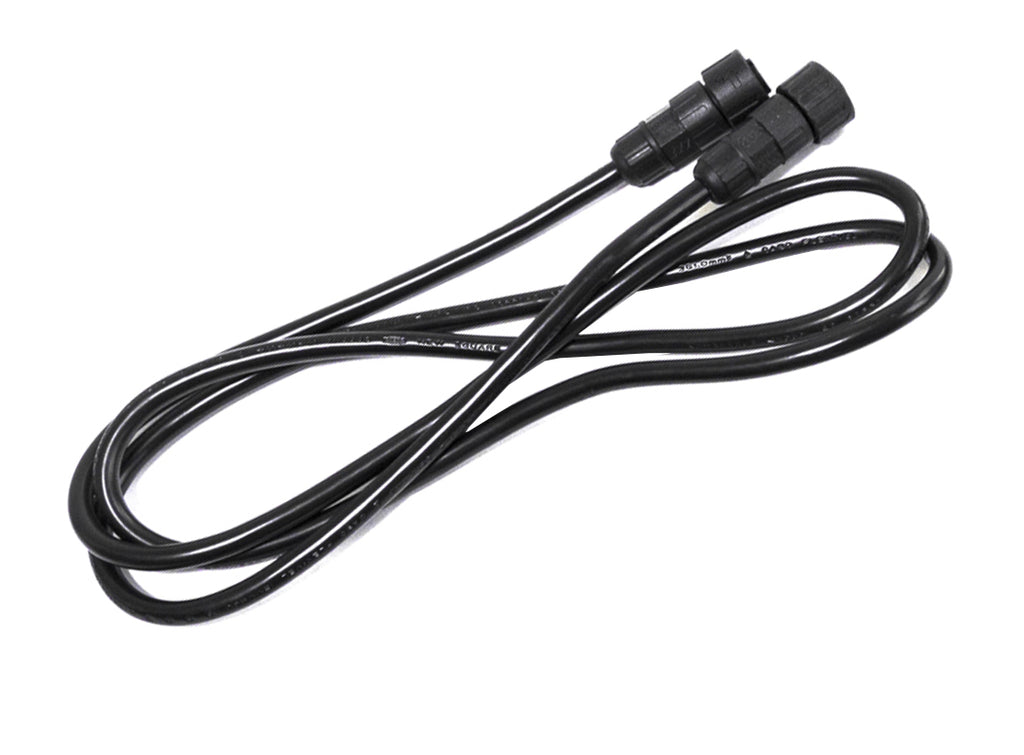

Extension Cable for VF Fixture LED 6.5 ft (Female-Male)

Product Specifications

Efficacy: 2.4 µmol/J
PPF Output: 244 µmol/s
Input Power: 130W (± 5%)
Input Voltage: 120-277 V AC, 50-60 Hz
Light Source: High Spec White & Warm White Diodes
Spectrum: Spectrum G (Vegetative/Full Spectrum)
Dimming: OFF-25-50-75-100% (Controlled by VF 650W Driver)
Thermal Management: Passive (Fanless)
IP Rating: IP65
Lifetime: L90 > 60,000 hrs
Weight: 3.74 lbs (1.7 Kg)
Dimensions: 47.5'' x 20.5'' x 0.8'' (1207 x 521 x 20.5 mm)
